Vestil Steel 12 Volt DC Powered Foot Control Tilt Master TM-DC-FC

Vestil Steel 12 Volt DC Powered Foot Control Tilt Master TM-DC-FC

Vestil

$5,475.88
Free Shipping. Lifetime Returns.
Capacity
Availability: Translation missing: en.general.icons.icon_check_circle icon In Stock
Pre-Approved Financing Available. See If You Qualify.

Notify me when back in stock

Simplify lifting and tilting tasks with the Vestil Tilt Master DC Powered Foot Control.

The Vestil Steel Tilt Master DC Powered Foot Control gives you the ability to lift, tilt, and transport filled totes or baskets easily.

  • It replaces the need for a forklift in tight work areas and speeds up movement between workstations.
  • Its slim frame allows operators to get closer to loads for better handling, and its durable phenolic wheels provide smooth rolling across the facility.
Lift Heavy Weights with Ease

2000lb and 4000lb weight capacities.

Tilt Forks Icon

90° of tilt capability.

Emergency Key System Icon

Tilt feature stabilizes uneven loads, helping to prevent accidents.

Customizable Width

Max platform height of 33in, and lowered height of 3.5in.

Get ergonomic performance with the Tilt Master DC Foot Control for improved efficiency.

This Tilt Master DC Powered Foot Control is packed with ergonomic features for comfortable operation.

  • The folding handle stays out of the way when not needed, while the 90° tilt angle reduces awkward bending and twisting.
  • Heavy loads up to 2,000 lbs or 4,000 lbs are easily handled with push-button lifting and smooth-tilt foot control.

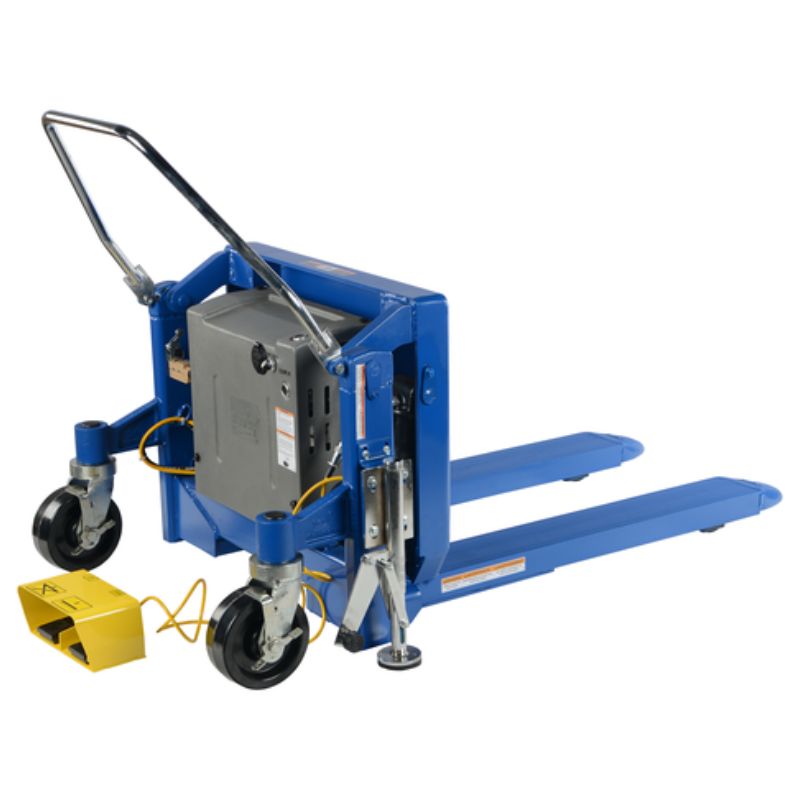

Back Side View of Vestil TM-DC-FC with Foot Control

Make safer, quicker moves with the Vestil DC Powered Tilt Master Foot Control.

The Vestil Steel Tilt Master Foot Control lets users tilt loads safely and efficiently at the touch of a foot pedal.

  • Two rigid and two swivel casters make mobility effortless, while the built-in floor lock provides extra stability when loading and unloading.
  • The tilt master works best with open-bottom pallets and skids for seamless handling.

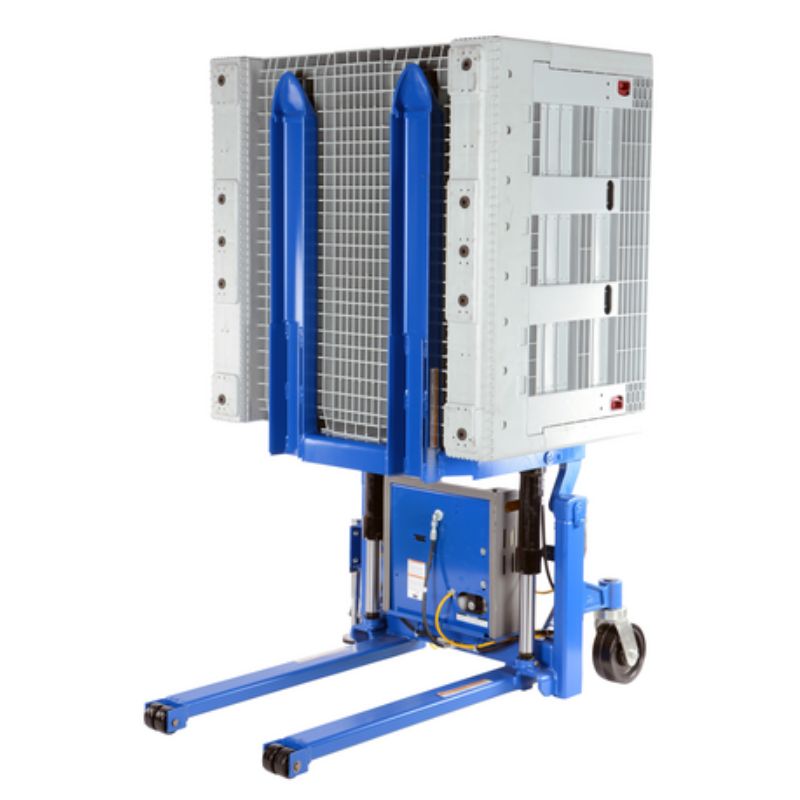

Foot Controlled DC Powered Tilt Master with Crate at 90 Degrees

Choose the best Tilt Master DC Foot Control model based on your lifting needs.

The Vestil Tilt Master DC Powered Foot Control TM-DC-FC comes in two models:

  • 2,000 lb capacity for lighter loads
  • 4,000 lb capacity for heavier applications
  • Both models feature the same durable design, 12V DC motor, on-board battery charger, and easy-to-use battery charge indicator.

Select the right unit to match your daily load demands.

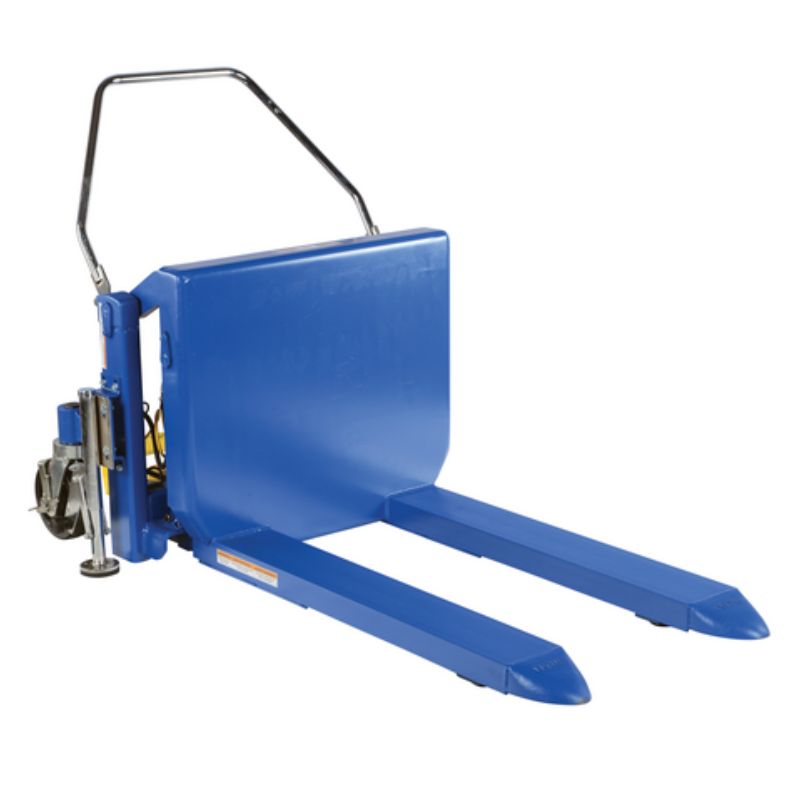

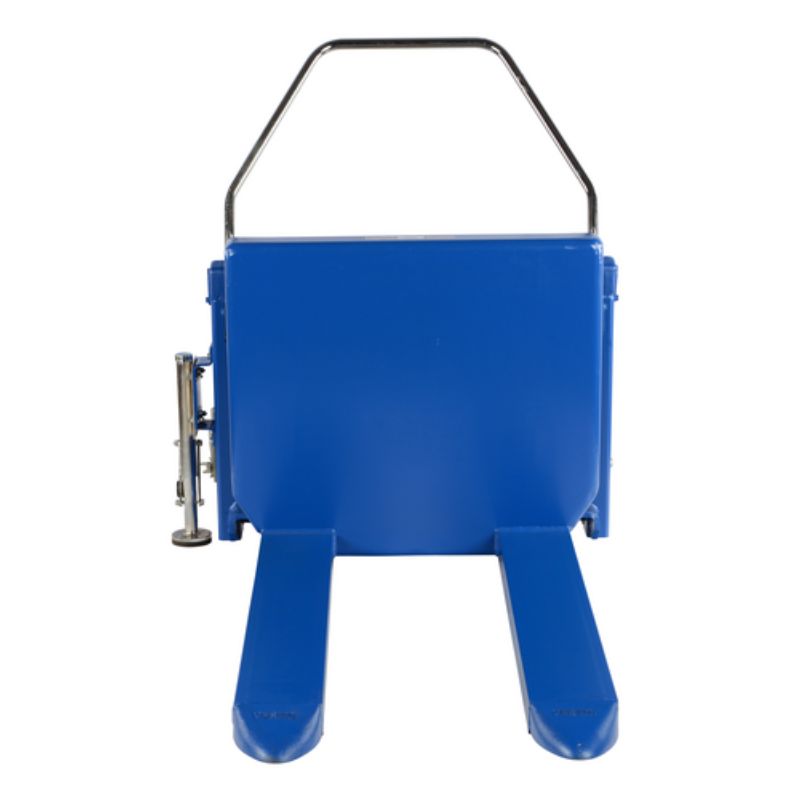

Front Side Flat View of Vestil 12 Volt Electric Tilt Master

Important Product Specifications.

Available Capacities 2000lb, 4000lb
Power Source Electric – Cordless (12V DC Motor)
Tilt Activation Method Foot Control with Push Button Option
Platform Height (Raised) 33 inches
Platform Height (Lowered) 3.625 inches
Fork Length 38.125 inches
Fork Width 6 inches
Fork Overall Width 26 inches (Outside Dimension)
Maximum Tilt Angle 90 Degrees
Wheel Type Phenolic (2 Rigid, 2 Swivel)
Battery Included Yes – with On-Board Charger
Color / Finish Blue Powder-Coated Steel
Warranty 1 Year Limited Parts Warranty
Vestil 12 Volt TM-DC-FC Tilt Master with Free Shipping

What’s Included with Your Vestil Tilt Master DC Powered Foot Control.

  • Vestil Tilt Master DC Powered Foot Control Unit - (Select either the 2000lb or 4000lb capacity model.)
  • Integrated 12V Battery with On-Board Charger - Plus a built-in battery charge indicator gauge.
  • Folding Ergonomic Handle - Easily folds down when not needed to allow closer work access.
  • Floor Lock and Phenolic Steering Wheels - Ensures stability and smooth movement across warehouse floors.
  • Factory-Installed Safety Features - Including overload protection and emergency safety locks.

Common Questions About the Vestil Tilt Master DC Powered Foot Control.

What makes the foot control version different from standard models?

This unit allows you to control tilting using a foot pedal instead of only hand controls, offering hands-free operation when needed.

Is there a battery charger included?

Yes, each unit comes with an onboard battery charger and a visible battery charge indicator gauge.

Can it move across different floor surfaces easily?

Yes, thanks to its phenolic casters and floor lock, the unit rolls smoothly and safely across concrete, tile, and even textured surfaces.

How do I choose between 2000lb and 4000lb capacities?

Always choose based on your maximum load weight, factoring in a 10–15% safety buffer.
