Vestil Steel AC Powered Straddle Tilt Master TMS-AC

Vestil Steel AC Powered Straddle Tilt Master TMS-AC

Vestil

$5,516.92
✓ Free Shipping on Orders Over $50
✓ Direct-To-Owner Service
✓ Non-Refundable/Non-Returnable,Approval Drawing Required
✓ 365 Day Manufacturer Warranty Included
✓ Estimated Lead Time: 16-40 Days
✓ Contact for Bulk-Order Pricing
Capacity
Availability: Translation missing: en.general.icons.icon_check_circle icon In Stock

Notify me when back in stock

Lift and move loads efficiently with the Vestil Straddle Tilt Master AC Powered.

The Vestil Steel Tilt Master Straddle AC Powered System offers an easy solution to lift and position filled tote boxes or baskets without needing a forklift.

  • Its straddle design accommodates virtually any type of pallet or container, and the slim profile lets users get closer to the load for better control.
  • With a built-in floor lock and smooth-rolling phenolic wheels, the unit is ready to tackle demanding workstations and production areas.
Lift Heavy Weights with Ease

2000lb, 4000lb, and 6000lb weight capacities.

Tilt Forks Icon

90° of tilt capability.

Emergency Key System Icon

Tilt feature stabilizes uneven loads, helping to prevent accidents.

Customizable Width

Max platform height of 33in, and lowered height of 3.5in.

Improve your facility’s ergonomics with the Vestil AC Straddle Tilt Master.

The AC Powered Straddle Tilt Master helps minimize bending, reaching, and twisting by bringing materials up to a more comfortable working angle.

  • The 90-degree tilt feature allows operators better ergonomic access to loads, dramatically reducing the risk of repetitive motion injuries.
  • Constructed with heavy-duty steel, this unit is built for rugged durability across a variety of material handling environments.

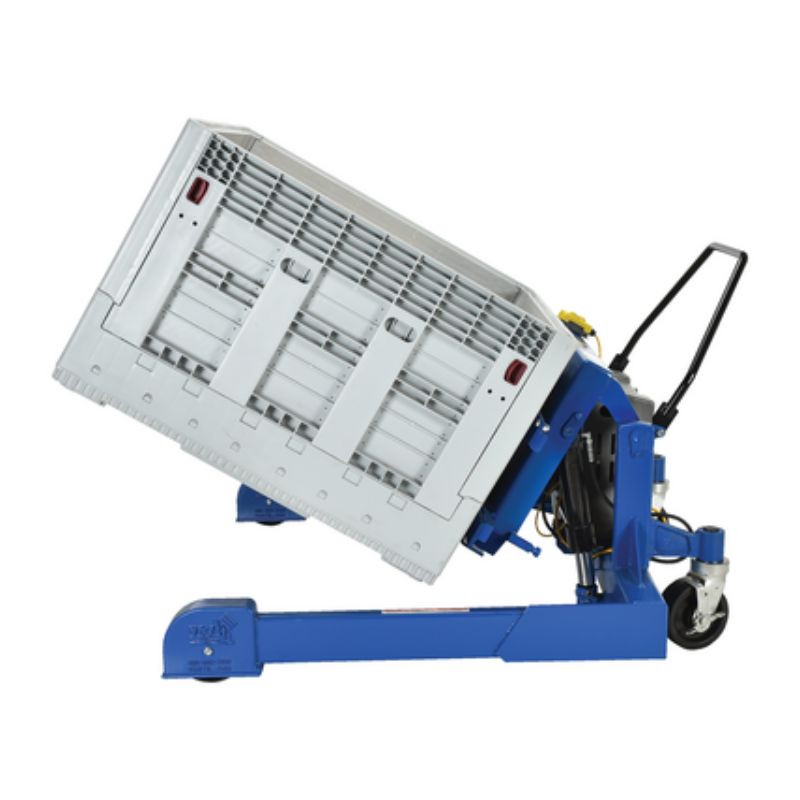

Vestil TMS-AC Powered Tilt Straddle Master with Crate Side View

Experience better handling with the Vestil Tilt Master AC Powered Straddle model.

The Tilt Master Straddle from Vestil glides effortlessly across your facility with two rigid and two swivel phenolic casters.

  • Designed for fast and controlled mobility, the push-button hand control allows operators to lift, transport, and tilt loads without strain.
  • A folding ergonomic handle ensures maximum user comfort and compact storage when not in use.

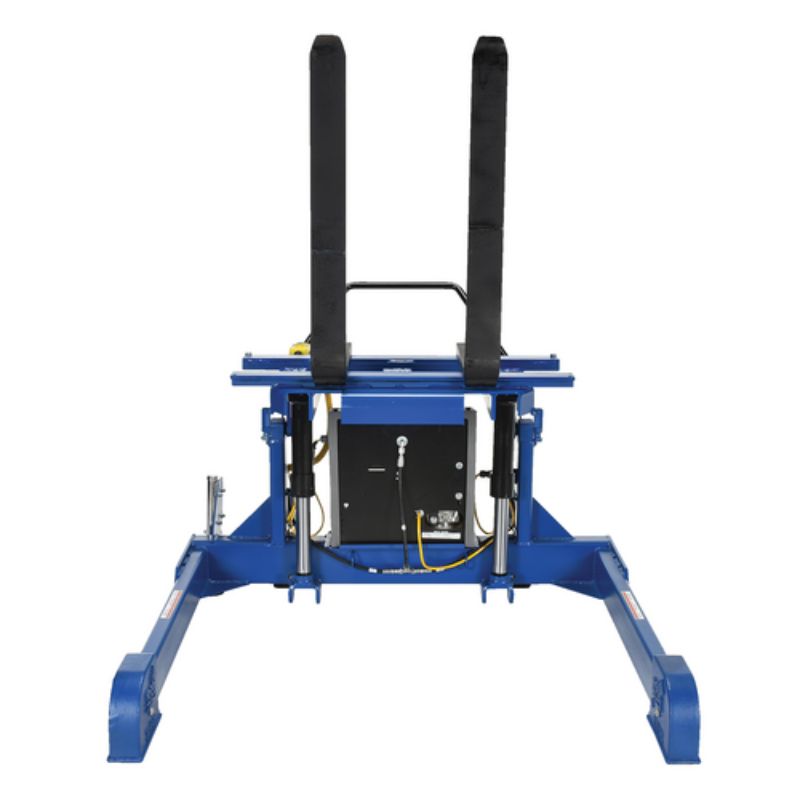

Vestil TMS-AC Straddle Tilter with Forks at 90 Degrees

Choose the right Vestil Tilt Master Straddle for your lifting demands.

  • The Vestil Tilt Master Straddle AC Powered Series comes in 2,000 lb, 4,000 lb, and 6,000 lb capacity models.
  • Each version features a durable steel frame, adjustable fork width to fit a range of container sizes, and an efficient AC-powered lift system.

Select the ideal model for your facility’s workflow and keep your production moving safely and efficiently.

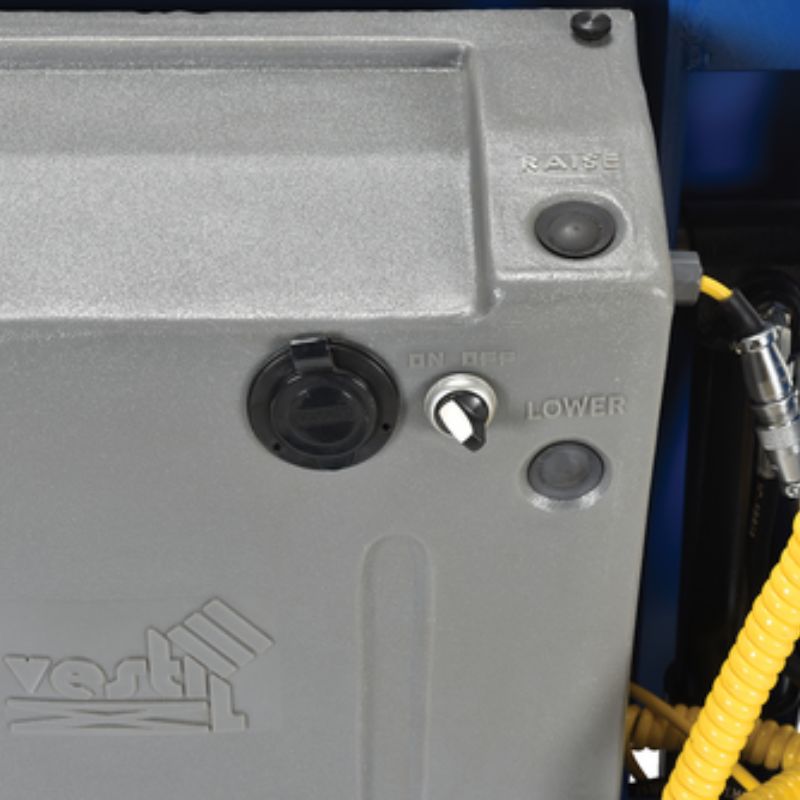

Closeup View of Vestil AC Straddle Tilt Master Buttons

Important Product Specifications.

Capacity Options 2,000 lb, 4,000 lb, 6,000 lb
Maximum Tilt Angle 90 degrees
Overall Dimensions 72.8125"L x 57.25"W x 29.25"H
Fork Length 35 inches
Fork Width 4 inches
Fork Width Adjustment (ID) 0.5" to 28.5"
Minimum Fork Height 3 inches
Rotated Height 37 inches
Power Source 115V Single Phase AC
Wheel Material Phenolic (Rear), Glass Filled Nylon (Front)
Frame Material Steel
Warranty 1 Year Limited Parts Warranty
Vestil TMS-AC Powered Straddle Tilt Master with Free Shipping

What’s Included with Your Vestil Straddle Tilt Master AC Powered?

  • Fully assembled Vestil Tilt Master Straddle AC Powered Lift
  • Integrated 115V AC electric motor system
  • Phenolic and glass-filled nylon caster wheels
  • Floor lock for additional stability during use
  • Operator manual and maintenance guide

Common Questions About the Vestil Straddle Tilt Master AC Powered

Can the Straddle Tilt Master lift closed-bottom pallets?

Yes, its adjustable fork design allows compatibility with most pallet types and containers.

Does this model include a charger or battery?

No battery is needed; it operates on standard 115V AC power.

Is the lifting operation manual or electric?

Lifting and tilting are fully powered using the electric push-button hand control.

How adjustable are the forks?

The forks can be adjusted from 0.5 inches to 28.5 inches inside diameter to accommodate a wide variety of loads.
