Vestil Steel AC Powered Tilt Master TM-AC

Vestil Steel AC Powered Tilt Master TM-AC

Vestil

$5,301.93
✓ Free Shipping on Orders Over $50
✓ Direct-To-Owner Service
✓ Non-Refundable/Non-Returnable,Approval Drawing Required
✓ 365 Day Manufacturer Warranty Included
✓ Estimated Lead Time: 16-40 Days
✓ Contact for Bulk-Order Pricing
Capacity
Availability: Translation missing: en.general.icons.icon_check_circle icon In Stock

Notify me when back in stock

Increase Material Handling Efficiency with the Vestil TM-AC Tilt Master.

The Vestil Steel Tilt Master AC Powered TM-AC is the ideal solution for lifting, tilting, and transporting filled tote boxes, baskets, and open-bottom pallets without the need for forklifts or lift tables.

  • This heavy-duty tilter moves completed products between workstations quickly and easily, improving workflow and reducing downtime.

Available in three models

  • 2,000lb
  • 4,000lb
  • and 6,000lb capacity

You can choose the perfect fit for your material handling needs.

Lift Heavy Weights with Ease

2,000lb, 4,000lb, and 6,000lb weight capacities.

Tilt Forks Icon

90° of tilt capability.

Emergency Key System Icon

Tilt feature stabilizes uneven loads, helping to prevent accidents.

Customizable Width

Max rotated height of 33in, and lowered height of 3.5in.

Designed for Ergonomic Operation with the TM-AC Tilt Master.

  • Each Tilt Master TM-AC is built with an ergonomic folding handle, phenolic wheels, and a thin profile frame to allow users to get closer to the load for easier lifting and tilting.
  • The 90° tilt range provides comfortable access to contents, reducing the need for awkward bending or reaching.

Whether you're moving pallets, crates, or baskets, this design reduces strain and promotes better posture throughout your operation.

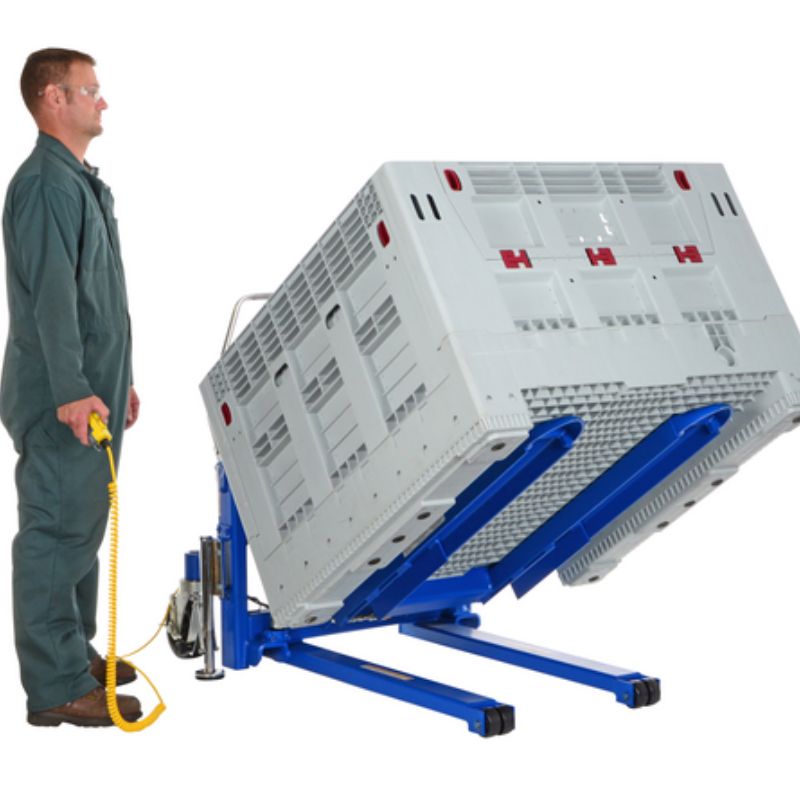

Vestil TM-AC Powered Tilt Master With Man Loading Pallet

Electric-Powered Performance Across All TM-AC Variants.

  • The Vestil TM-AC Tilt Master is powered by a 115V single-phase AC motor with a push-button hand control for fast, efficient lifting and tilting.
  • Overload protection is built in to safeguard the motor during heavy use, and a floor lock stabilizes the unit while loading or unloading.

All variants (2,000 lb, 4,000 lb, and 6,000 lb models) share the same great performance features, differing only in their rated weight capacities.

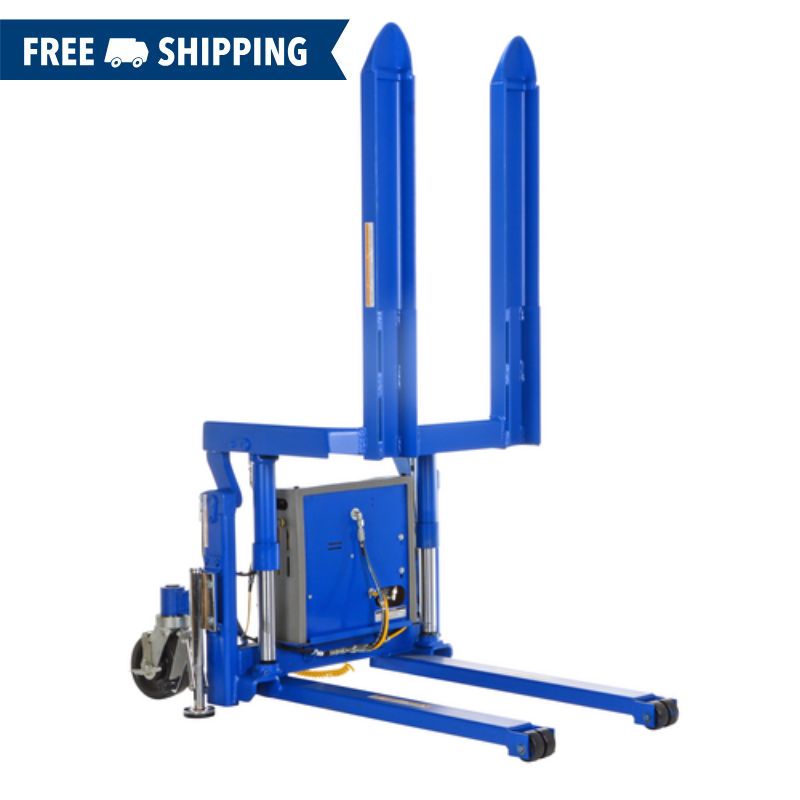

TM-AC Steel Hydraulic Tilt Master with Forks in the Air

Built Tough for Warehouse Durability and Daily Use.

  • Constructed with heavy-duty welded steel and finished in a durable blue powder coat, the Tilt Master TM-AC is made for rugged, high-traffic environments.
  • The fixed fork width of 26 inches (outside dimension) accommodates a wide range of open-bottom pallets and skids.

Whether you're outfitting a manufacturing line, warehouse floor, or distribution center, the TM-AC series delivers reliable and ergonomic performance every day.

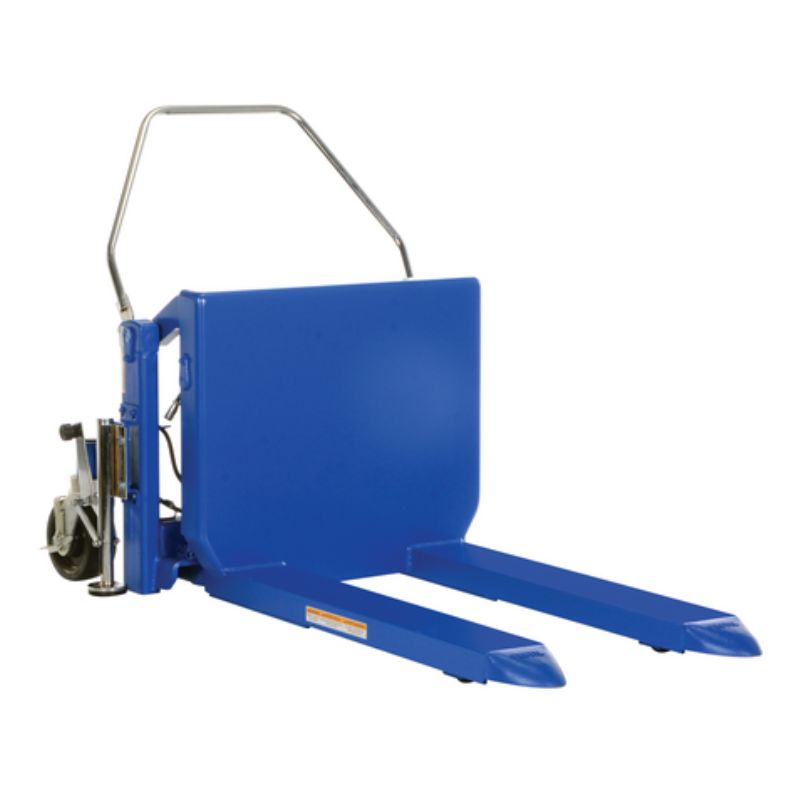

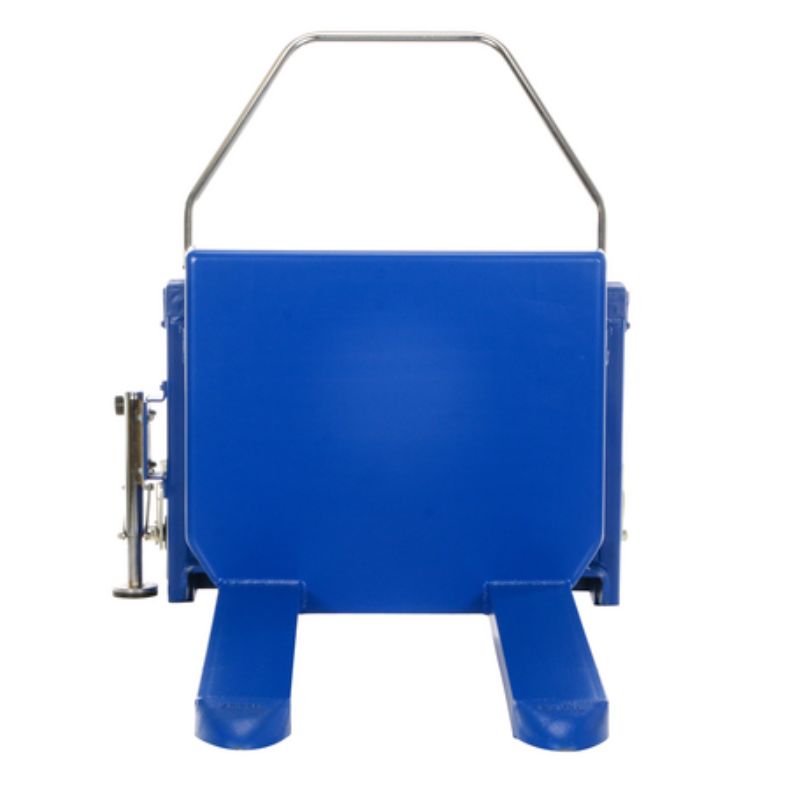

Front Side View of Vestil TM-AC Electric Tilt Master

Important Product Specifications.

Available Capacities 2,000 lb, 4,000 lb, 6,000 lb
Power Source Electric (115V / Single Phase)
Fork Length 38-1/8 inches
Fork Width 6 inches
Fork Outer Width (OD) 26 inches (fixed)
Operator Reach 7-1/4 inches
Lowered Height 3-5/8 inches
Rotated Height 33 inches
Maximum Tilt Angle 90 degrees
Overall Dimensions 75.25" L x 41.0625" W x 76.3125" H
Frame Material Heavy-Duty Steel
Finish Durable Blue Powder Coat
Wheel Type Phenolic (Two Rigid, Two Swivel with Brakes)
Wheel Size 8" Diameter, 3" Width
Warranty 1 Year Parts + 90 Days Wearable Parts
Vestil TM-AC AC Powered Tilt Master with Free Shipping

What’s Included with the Vestil TM-AC Tilt Master.

  • Fully Assembled Vestil TM-AC Tilt Master
  • Ergonomic Folding Push Handle
  • Floor Lock for Safety During Loading
  • Push-Button Hand Pendant Controller
  • Heavy-Duty Phenolic Wheels for Smooth Rolling
  • 1-Year Manufacturer Warranty on Parts + 90-Day Wearable Parts Warranty

Common Questions About the TM-AC Tilt Master.

Which TM-AC model should I choose?

Choose the 2,000 lb, 4,000 lb, or 6,000 lb capacity model based on the heaviest load you plan to lift and tilt.

Can the TM-AC Tilt Master lift full pallets?

It is designed specifically for open-bottom pallets and skids. It will not work with closed-bottom pallets.

Does the unit come fully assembled?

Yes, the Tilt Master TM-AC arrives fully assembled and ready to use.

Is a battery or external charger needed?

No batteries are needed. The unit is powered by standard 115V electric.
