ApolloLift 63" Manual Pallet Stacker with Adjustable Forks 1100lbs Cap

ApolloLift 63" Manual Pallet Stacker with Adjustable Forks 1100lbs Cap

ApolloLift

$1,450.00
Free Shipping. Lifetime Returns.
Availability: Translation missing: en.general.icons.icon_check_circle icon In Stock
Pre-Approved Financing Available. See If You Qualify.

Notify me when back in stock

Tired of Lifting and Stacking by Hand? The ApolloLift 63" Manual Stacker Lifts More with Less Effort.

Struggling to raise pallets or stock shelves without overexerting your team?

  • The ApolloLift 63" Manual Pallet Stacker with Adjustable Forks gives you the power to manually lift up to 1,100 lbs with foot-pump or handle-controlled precision, helping you safely and efficiently handle pallets in tighter areas.

Whether you're stocking shelves, loading product, or stacking pallets, this stacker eliminates the strain while keeping your operators safe and productive.

Lift Heavy Weights with Ease

1,100 lb capacity.

Hydraulic Powered Lift

Hydraulic-powered lift.

Emergency Key System Icon

Safety guards and brake system built-in.

Customizable Width

Adjustable forks offer compatibility with most pallets.

ApolloLift Manual Pallet Stacker Delivers Easy Lifting Without Power or Complicated Setup.

This stacker is ideal for facilities that don’t have access to electric pallet stackers or just need something simple, reliable, and strong.

  • The foot pump raises the forks nearly 1" per stroke, providing quick, smooth lifting up to 63 inches.
  • An ergonomic handle lets your team control descent with precision, and the metal grid backrest protects users from lift chains during stacking.

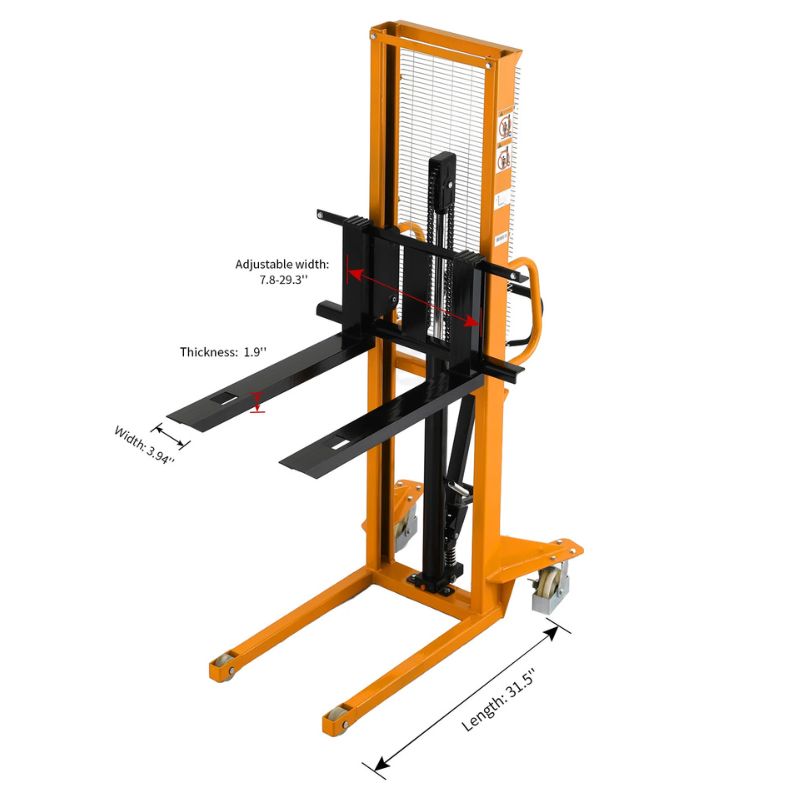

Adjustable Forks of Manual Pallet Stacker with 1100lb Capacity

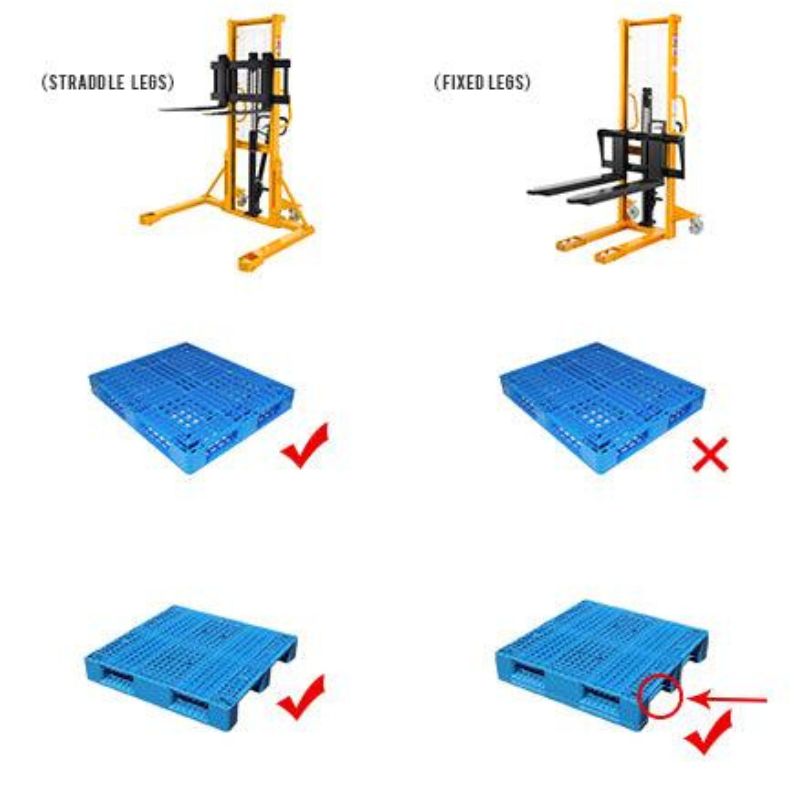

ApolloLift Adjustable Forks Help You Handle a Wide Range of Pallet Sizes with One Tool.

The adjustable fork design means you can use this stacker with a variety of loads.

  • Forks adjust from 7.9 to 29.3 inches wide, making it perfect for retail restocking, warehouse picking, or shelf loading.
  • Its compact 31.7" width and 48.6" turning radius make it easy to maneuver through narrow aisles, while the recommended 75.4" aisle width supports smooth pallet positioning.

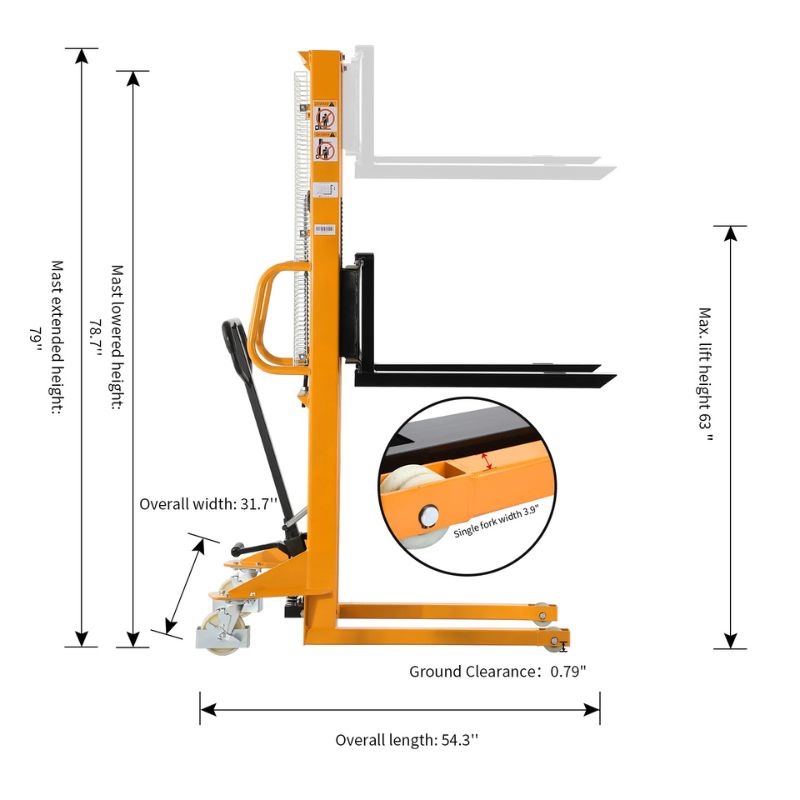

All Dimensions for the Manual Hydraulic 63" Pallet Stacker from ApolloLIft

ApolloLift Manual Stacker Prioritizes Operator Safety and Long-Term Durability.

  • Built with high-quality steel mast components and rigid frame construction, this unit withstands daily use with minimal maintenance.
  • Safety wheel guards and a brake system protect both the operator and surrounding equipment.
  • With manual hydraulic operation, there are no batteries or electronics to maintain, making this unit a smart investment for long-term efficiency.
Back Right Side View of ApolloLift Manual 63" Lift Pallet Stacker

Important Product Specifications.

Weight Capacity 1100lbs.
Maximum Lift Height 63 inches
Fork Length 31.5 inches
Fork Width (Adjustable) 7.9" to 29.3"
Power Source Manual (Foot Pump + Handle)
Mast Height (Lowered/Extended) 78.7" / 79"
Turning Radius 48.6 inches
Overall Dimensions 54.3" L x 31.7" W
Leg Width (Inner/Outer) 16.5" / 20.5"
Aisle Requirement 75.4 inches
Back Left Side View of ApolloLIft Manual Pallet Stacker in Warehouse

What's Included with the ApolloLift Manual Hydraulic Stacker with 63" Lift?

  • Manual Hydraulic Stacker with 63" Lift – Ready to help you lift without electricity or complicated systems.
  • Adjustable Fork System – Accommodates multiple pallet widths for flexible applications.
  • Steel Grid Safety Screen – Protects the operator from chain exposure while lifting.
  • Integrated Foot Pump and Handle Controls – Dual operation gives your team total control in any environment.

Common Questions We Get.

Do I need electricity to use this pallet stacker?

No. This is a fully manual unit powered by a foot-operated hydraulic pump and handle.

Can I use this for different pallet sizes?

Yes! The forks are adjustable from 7.9" to 29.3", making it compatible with a variety of pallet styles.

Is this easy to maneuver in tight spaces?

Absolutely. The compact frame and 48.6" turning radius make it great for narrow aisles and small warehouses.

What’s the lift height?

You can lift up to 63 inches, perfect for stacking pallets or reaching shelf-level storage.
