ApolloLift 63" Straddle Leg Manual Stacker with 1100lb Capacity

ApolloLift 63" Straddle Leg Manual Stacker with 1100lb Capacity

ApolloLift

$1,850.00
Free Shipping. Lifetime Returns.
Availability: Translation missing: en.general.icons.icon_check_circle icon In Stock
Pre-Approved Financing Available. See If You Qualify.

Notify me when back in stock

Still Wasting Time Lifting by Hand? The ApolloLift 63" Straddle Leg Manual Stacker Makes Vertical Storage Simple.

Is your warehouse team bending and straining every time they stock shelves or move pallets?

  • The ApolloLift 63" Straddle Leg Manual Stacker with 1100lb Capacity gives you a powerful, compact solution to safely lift, position, and stack loads without electricity.
  • With a lift height of 63 inches and a straddle leg design for extra clearance, it’s perfect for tight aisles, pallet positioning, and shelf stocking, without the hassle of manual lifting.
Lift Heavy Weights with Ease

1,100 lb capacity, and 63" lift height.

Hydraulic Powered Lift

Hydraulic-powered lift.

Emergency Key System Icon

Safety guards and brake system built-in.

Customizable Width

Adjustable forks offer compatibility with most pallets.

ApolloLift Straddle Leg Manual Stacker Uses a Foot Pump to Raise Loads Smoothly Without Strain.

  • This stacker is fully manual-operated with a high-efficiency hydraulic pump, delivering nearly 1 inch of lift per foot pedal stroke.

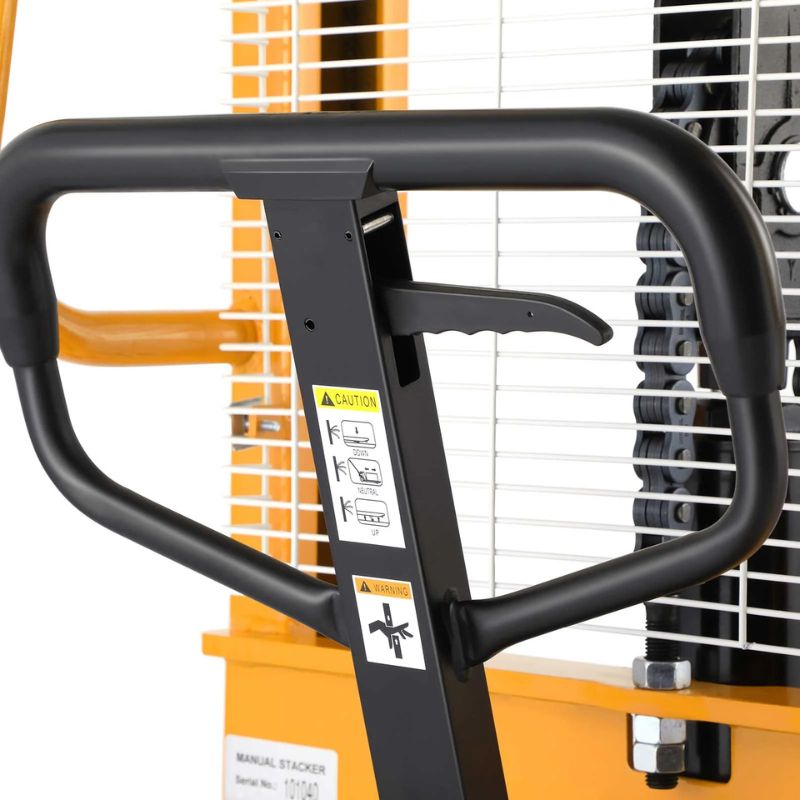

  • The easy-grip handle gives operators precise lowering control for careful placement of loads at the ideal height.

No need for power outlets or batteries, just pure, reliable lifting designed for small warehouses, backrooms, and tight workspaces.

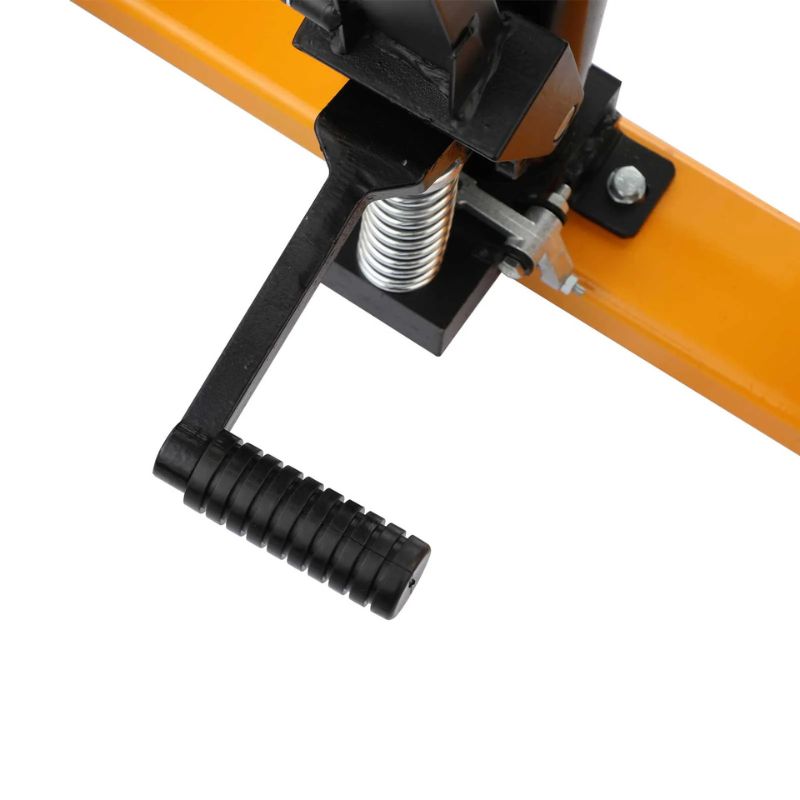

Foot Pedal for Hydraulic 63" Straddle Leg Pallet Stacker

ApolloLift Straddle Legs Provide More Clearance for Larger Skids and Easier Pallet Access.

Need extra room for unique pallet sizes?

  • The 51.1" wide inner straddle legs make it easy to surround larger skids without interfering with the forks.
  • Adjustable forks from 7.9" to 29.3" wide adapt quickly to different pallet sizes, helping your team stay efficient without having to swap equipment between tasks.
  • With a compact turning radius of 47.2", this unit handles tight aisles with ease.
Adjustable Dimensions for the Straddle Leg Hydraulic 63" Pallet Stacker

ApolloLift Manual Stacker Is Built for Long-Term Use in Demanding Environments.

  • Constructed with a rigid steel mast and durable frame, this stacker is built to stand up to daily warehouse use.

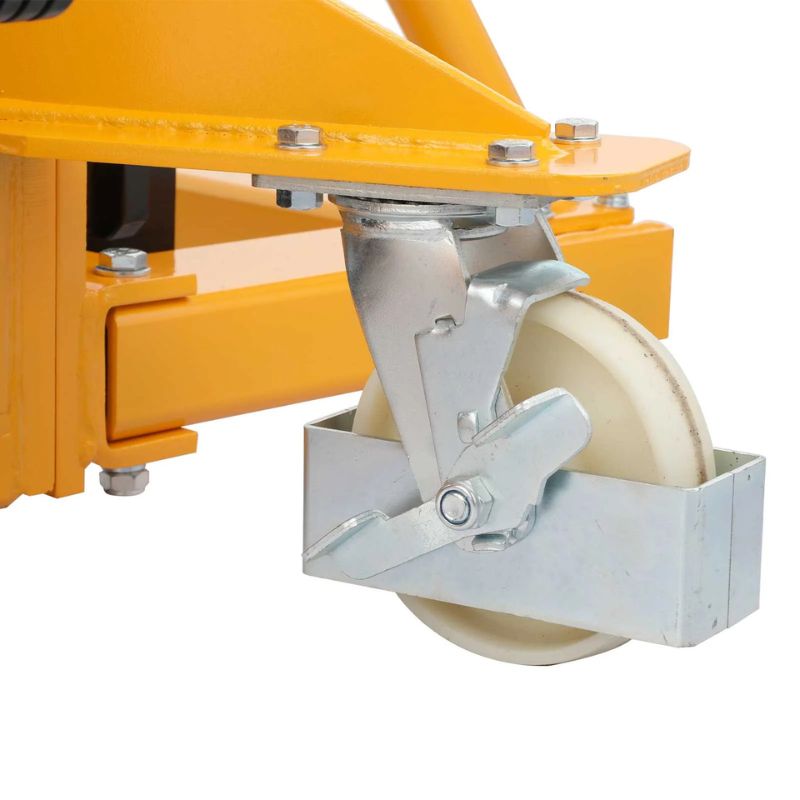

  • Safety is top priority with a protective metal grid that shields operators from lift chains, a wheel guard, and an integrated brake system for full control during use.

Its heavy-duty design and low-maintenance operation make this a smart investment for operations needing reliable, cost-effective lifting.

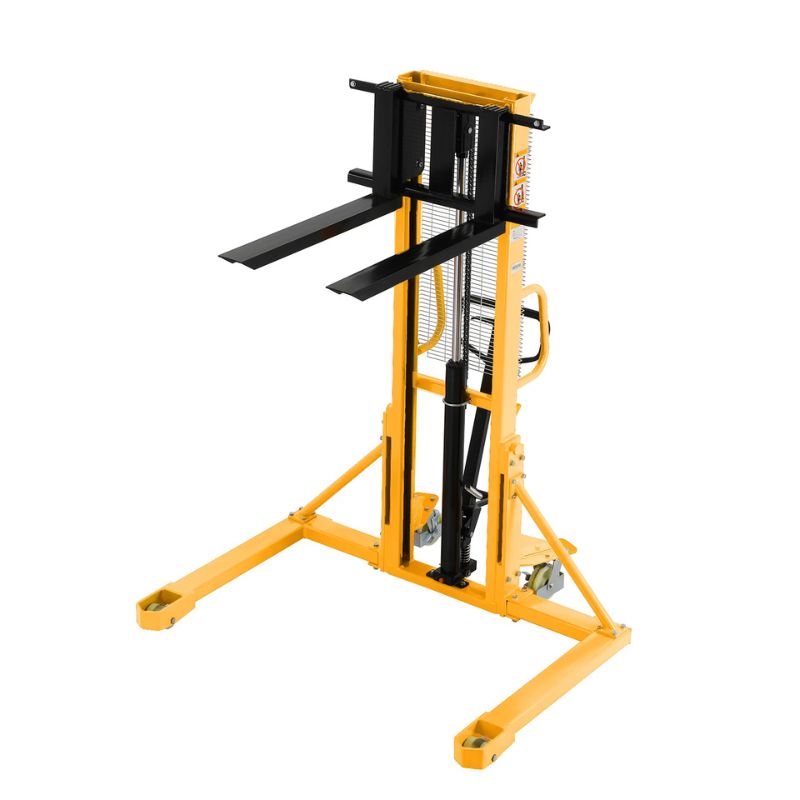

Fully Extended Hydraulic Straddle Leg Manual Pallet Stacker from ApolloLift

Important Product Specifications.

Weight Capacity 1100lbs.
Maximum Lift Height 63 inches
Fork Length 31.5 inches
Fork Width (Adjustable) 7.9" to 29.3"
Power Source Manual (Foot Pump + Handle)
Turning Radius 47.2 inches
Overall Dimensions 52.7" L x 60" W
Straddle Leg Width (Inner) 51.1 inches
Fork Lowered Height 2.8 inches

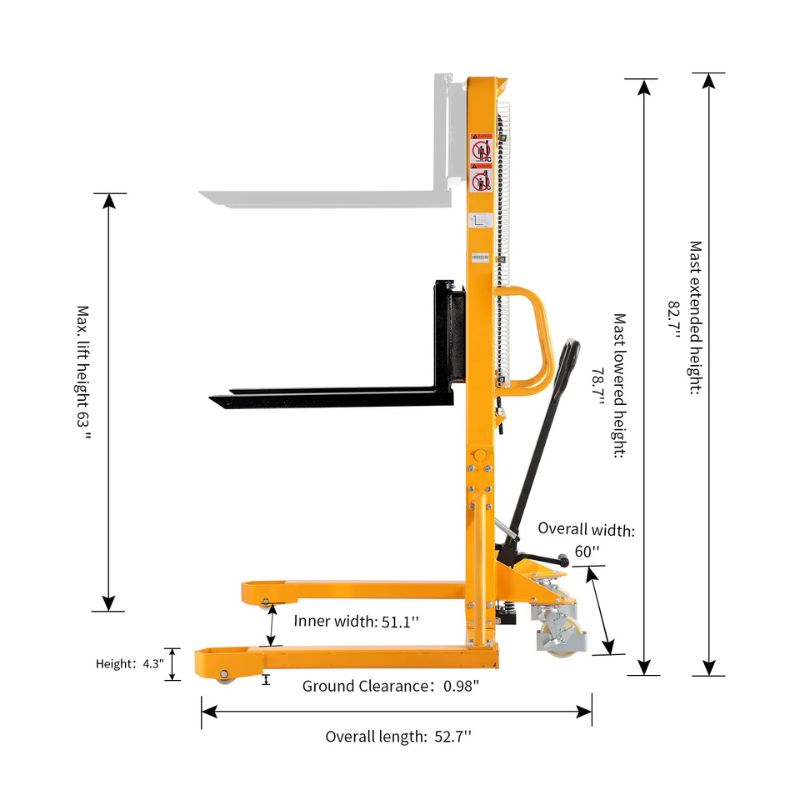

All Dimensions for the Straddle Leg 63" ApolloLift Pallet Stacker

What's Included with the ApolloLift Manual Straddle Leg Stacker with 63" Lift?

  • Manual Straddle Leg Stacker with 63" Lift – Delivered ready for manual pallet handling.
  • Adjustable Fork System – Works with a range of pallet sizes and skid types.
  • Foot Pump and Handle Controls – Smooth lifting and precise lowering with no electric power required.
  • Steel Mast with Grid Guard – Keeps operators protected during every lift.

Common Questions We Get.

Can this be used in areas without electricity?

Yes! This unit is 100% manual, using a foot-operated hydraulic pump and handle lever to raise and lower loads.

Will this work with different pallet sizes?

Absolutely. The adjustable forks and wide straddle legs make it compatible with many pallet shapes and dimensions.

Is it safe for warehouse use?

Yes, it’s built with safety wheel guards, a braking system, and a chain-protection grid to ensure secure operation every time.

How much can it lift?

This model can handle up to 1100 lbs with a lift height of 63 inches, ideal for shelf stacking and vertical storage.
