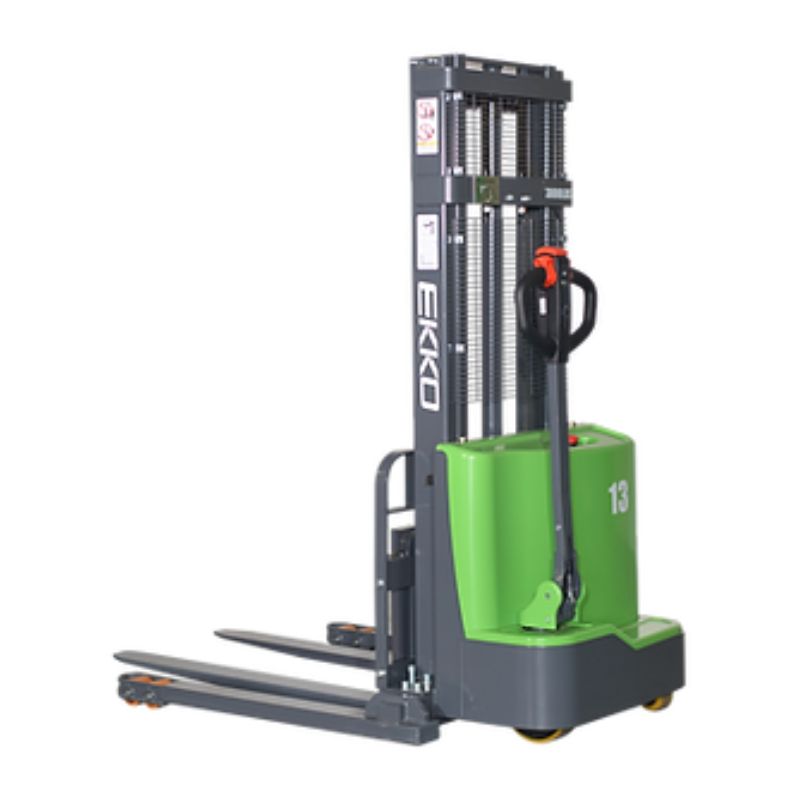

EKKO 138" Lift Lithium Powered Straddle Stacker with 2800lb Capacity EB13C-138Li

EKKO 138" Lift Lithium Powered Straddle Stacker with 2800lb Capacity EB13C-138Li

EKKO

$6,198.00
Free Shipping. Lifetime Returns.
Availability: Translation missing: en.general.icons.icon_check_circle icon In Stock
Pre-Approved Financing Available. See If You Qualify.

Notify me when back in stock

Need More Reach Without Sacrificing Maneuverability? The EKKO EB13C-138Li Has You Covered.

When your warehouse demands high lifting power in tight areas, the EKKO EB13C-138Li 138" Lift Lithium Powered Straddle Stacker delivers on both capacity and reach.

With a 2800 lb load limit, 138-inch lift height, and flexible fork/leg adjustments, this walkie stacker is ideal for tight aisles, tall shelving, and mixed pallet types.

Lift Heavy Weights with Ease

2,800lb weight capacity.

Tilt Forks Icon

24V/50Ah Lithium-Ion battery system for extended life.

Warranty Icon

3 Year Manufacturer Warranty included with every product.

Caster Wheel Icon

Polyurethane wheels built to last a lifetime.

Lift Higher. Operate Smoother. The EB13C-138Li Raises the Bar.

  • This 138-inch lift lithium straddle stacker is equipped to handle the tallest warehouse racks with ease.
  • Its adjustable forks (8.6"–32.1") and adjustable straddle legs (35.4"–51.2") allow it to handle a wide range of pallet sizes and configurations, without the need for multiple machines.

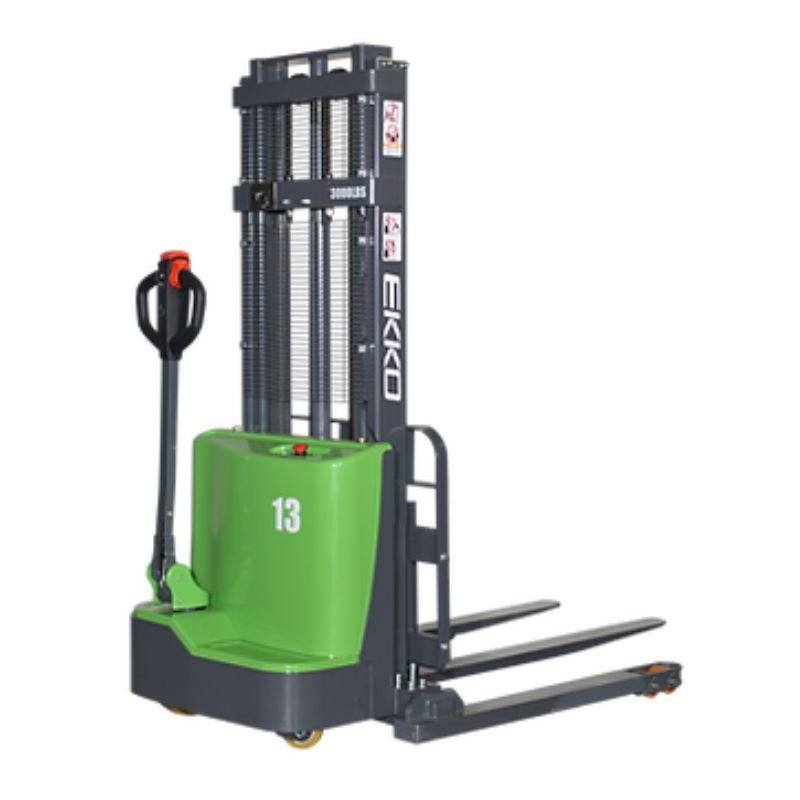

EKKO Lift EB13C-138Li Stacker Back Right Side View

The EB13C-138Li is Where Lithium-Powered Efficiency Meets Durable Design.

  • Powered by a 24V/50Ah lithium battery and internal 24V/20A charger, the EB13C-138Li ensures fast charging, long-lasting performance, and minimal maintenance.
  • A 0.75 kW drive motor and 2.2 kW lift motor provide smooth, consistent movement over a variety of floor surfaces, ideal for high-use applications.
EKKO Lift EB13C-138Li Stacker Back Right Side View Extended Up

Built Tough with Premium Features for Daily Demands.

  • With its steel construction, Curtis controller, and polyurethane wheels, this stacker is ready to take on warehouses, stockrooms, and distribution centers.
  • The 56.1" turning radius allows operators to navigate narrow aisles and crowded loading zones with confidence and control.
EKKO EB13C-138Li Pallet Stacker with Free Shipping

Important Product Specifications.

Model EB13C-138Li
Load Capacity 2,800 lbs
Lowered Mast Height 94.9 inches
Raised Lift Height 138 inches
Extended Mast Height 166.9 inches
Fork Length 45.3 inches
Adjustable Fork Width 8.6 – 32.1 inches
Adjustable Leg Width 35.4 – 51.2 inches
Turning Radius 56.1 inches
Battery 24V/50Ah Lithium + 24V/20A Charger
Lift Motor / Drive Motor 2.2 kW / 0.75 kW
Service Weight 1,400 lbs
Warranty 3 Year Manufacturer Warranty

What's Included with the EKKO EB13C-138Li Pallet Stacker?

  • EKKO EB13C-138Li Lithium Straddle Stacker
  • 24V/50Ah Lithium Battery + Built-In 24V/20A Charger
  • Adjustable Forks and Legs for Multiple Pallet Types
  • Polyurethane Wheels for Smooth Indoor Travel
  • Ergonomic Controls + Curtis Instrument Controller
  • Heavy-Duty Steel Frame with Robotic Welds
  • 3-Year Limited Warranty

Common Questions About the EKKO EB13C-138Li Stacking Machine.

Can I use this in food or medical environments?

Yes, its smooth steel surfaces and lithium battery make it suitable for clean environments with minimal emissions or residue.

What’s the advantage of the lithium battery over lead-acid?

Faster charging, no maintenance, and longer lifespan—all while delivering consistent power and zero memory effect.

Is it difficult to operate in small warehouse aisles?

Not at all. The 56.1" turning radius makes this one of the most maneuverable stackers at this lift height and capacity.

EKKO EB13C-138Li Lithium Powered Pallet Stacker Product Manuals

EKKO Lift Manufacturer Warranty

EB13C-138Li Product Brochure
