EKKO 177" Lift Lithium Powered Electric Straddle Stacker with 4400lb Capacity EB20CS-177Li

EKKO 177" Lift Lithium Powered Electric Straddle Stacker with 4400lb Capacity EB20CS-177Li

EKKO

$18,430.00
✓ Free Shipping on Orders Over $50
✓ Direct-To-Owner Service
✓ Lifetime Returns & Full Refund
✓ 3 Year Manufacturer Warranty Included
✓ Estimated Lead Time: 4-7 Days
✓ Contact for Bulk-Order Pricing
Availability: Translation missing: en.general.icons.icon_check_circle icon In Stock

Notify me when back in stock

EKKO EB20CS-177Li 177" Lithium Powered Straddle Stacker with 4400lb Capacity.

Need serious lifting height and top-tier power?

The EKKO EB20CS-177Li Electric Straddle Stacker is built for high-performance warehouses that demand more.

With a 4400 lb load capacity, 177" lift height, and 24V/150Ah lithium power, this machine delivers precision, speed, and reliability.

Lift Heavy Weights with Ease

4,400lb weight capacity.

Tilt Forks Icon

24V/150Ah lithium-ion battery system for extended life.

Warranty Icon

3 Year Manufacturer Warranty included with every product.

Caster Wheel Icon

Polyurethane wheels built to last a lifetime.

High-Capacity Lifting Meets Maximum Efficiency with the EKKO EB20CS-177Li Straddle Stacker.

  • This model combines the best of a forklift, walkie stacker, and reach truck into one compact powerhouse.
  • The triple mast and side shift function allow for accurate load positioning, even in tight warehouse aisles, while the adjustable forks (8.7"–32.1") and legs (39.8"–55.5") give you flexibility to accommodate different pallet sizes.
EKKO Lift EB20CS-177Li Stacker Back Right Side View

Get Lithium Performance for Long Shifts from the EKKO EB20CS-177Li Electric Stacker.

  • Powered by a 24V/150Ah lithium-ion battery, the EB20CS-177Li charges faster and lasts longer than traditional lead-acid alternatives.
  • The included 24V/50A charger keeps operations running with minimal downtime, even on demanding schedules.

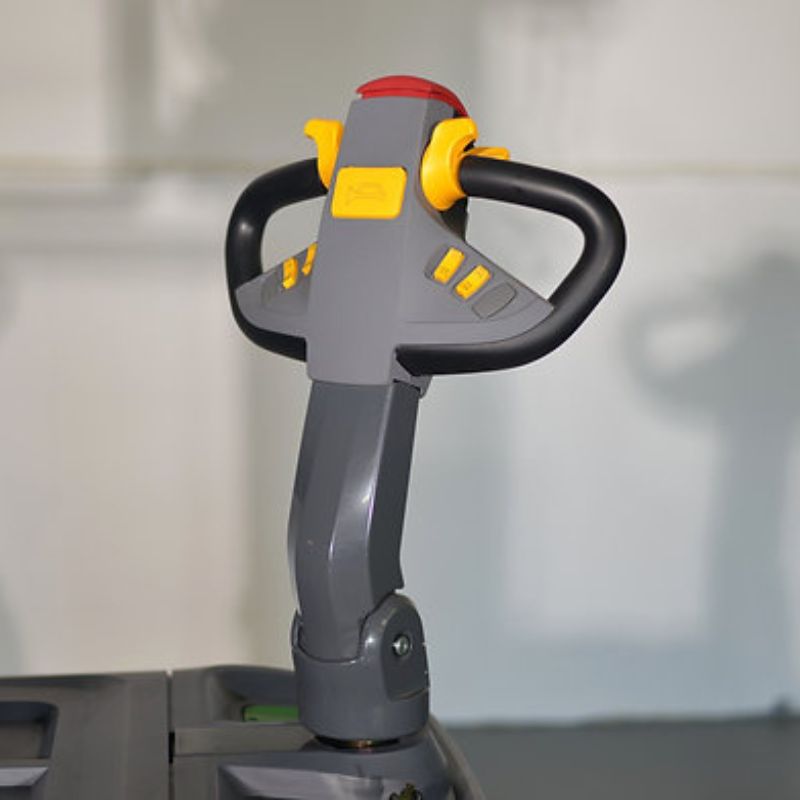

EKKO Lift EB20CS-177Li Stacker Handle Buttons View

Heavy-Duty Power That’s Easy to Control.

  • With a 3,000W lift motor, 1,500W AC drive motor, and Curtis controller, operators can enjoy smooth, consistent movement with minimal physical strain.
  • The ergonomic handle, polyurethane wheels, and compact 65" turning radius enhance maneuverability across diverse warehouse conditions.
EKKO EB20CS-177Li Pallet Stacker with Free Shipping

Important Product Specifications.

Model EB20CS-177Li
Load Capacity 4,400 lbs
Lowered Fork Height 2.6 in
Raised Lift Height 177 in (14.75 ft)
Fork Length 45.3 in
Adjustable Fork Width 8.7 – 32.1 in
Adjustable Leg Width 39.8 – 55.5 in
Turning Radius 65 in
Battery / Charger 24V/150Ah Lithium / 24V/50A
Lift Motor / Drive Motor 3 kW / 1.5 kW
Service Weight 2,970 lbs
Warranty 3 Year Manufacturer Warranty

What's Included with the EKKO EB20CS-177Li Pallet Stacker?

  • EKKO EB20CS-177Li Electric Straddle Stacker
  • Side Shifting Mechanism for Load Precision
  • Triple Mast Design for Maximum Vertical Reach
  • Curtis Instrument Control System
  • High-Speed 24V/50A Charger
  • Robust Polyurethane Wheels
  • Ergonomic Steering & Handle Controls
  • 24V/150Ah Lithium Battery
  • 3-Year Limited Warranty

Common Questions About the EKKO EB20CS-177Li Stacking Machine.

Can it handle multiple shifts on one charge?

Yes, the 150Ah lithium battery provides exceptional runtime, ideal for extended use in high-volume operations.

Is this stacker suitable for tight spaces?

Definitely. With a 65-inch turning radius, adjustable forks, and compact footprint, it’s perfect for maneuvering in narrow aisles.

Does it come fully assembled?

Yes. It arrives ready to use, with battery and charger included.
