EKKO 196"Lift Stand-up Narrow Aisle Lithium Reach Truck 4000lb Capacity EK18RR-196Li

EKKO 196"Lift Stand-up Narrow Aisle Lithium Reach Truck 4000lb Capacity EK18RR-196Li

EKKO

$48,999.00
Free Shipping. Lifetime Returns.
Availability: Translation missing: en.general.icons.icon_check_circle icon In Stock
Pre-Approved Financing Available. See If You Qualify.

Notify me when back in stock

Maximize Storage and Agility with the EKKO EK18RR-196Li Lithium Reach Truck.

The EKKO EK18RR-196Li is your go-to solution for narrow aisle storage, vertical lift needs, and battery-efficient operation, all in one machine.

  • With a 4000 lb capacity, 22.44" reach, and 196" triple mast, it’s engineered for high-performance in tight, high-volume racking environments.
  • Whether you're operating in confined warehouses or optimizing vertical storage, this lithium-powered reach truck delivers precision, power, and extended runtime with less maintenance.

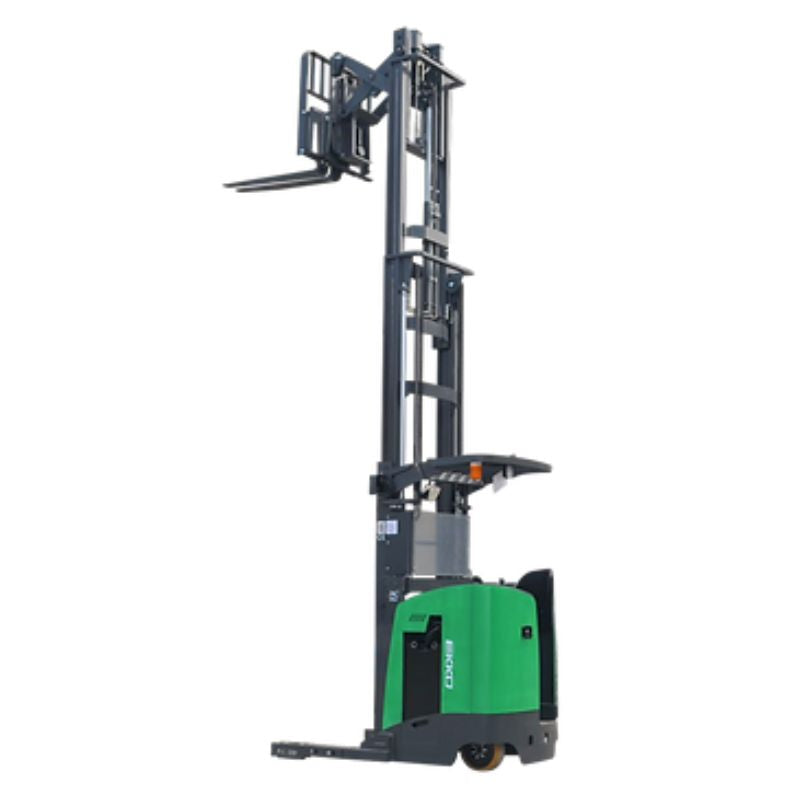

EKKO EK18RR-196Li Narrow Aisle Lithium Reach Truck Fully Extended
Lift Heavy Weights with Ease

4,000lb weight capacity.

Battery Icon

48V/350Ah lithium battery gets you through the whole work day.

Hydraulic Lift Icon

Electric and hydraulic lift makes this reach truck helpful everywhere in the warehouse.

Caster Wheel Icon

Polyurethane wheels built to last a lifetime.

The EKKO EK18RR-196Li's 196" Lift Height and Lithium Battery Bring You Nonstop Performance.

  • This model lifts over 16 feet with ease, providing a 53.15" free lift for trailer operations or mezzanine work.
  • The 48V/350Ah lithium battery charges faster and lasts longer, making it ideal for multi-shift operations or high-cycle warehousing.

No acid spills. No watering. Just dependable uptime.

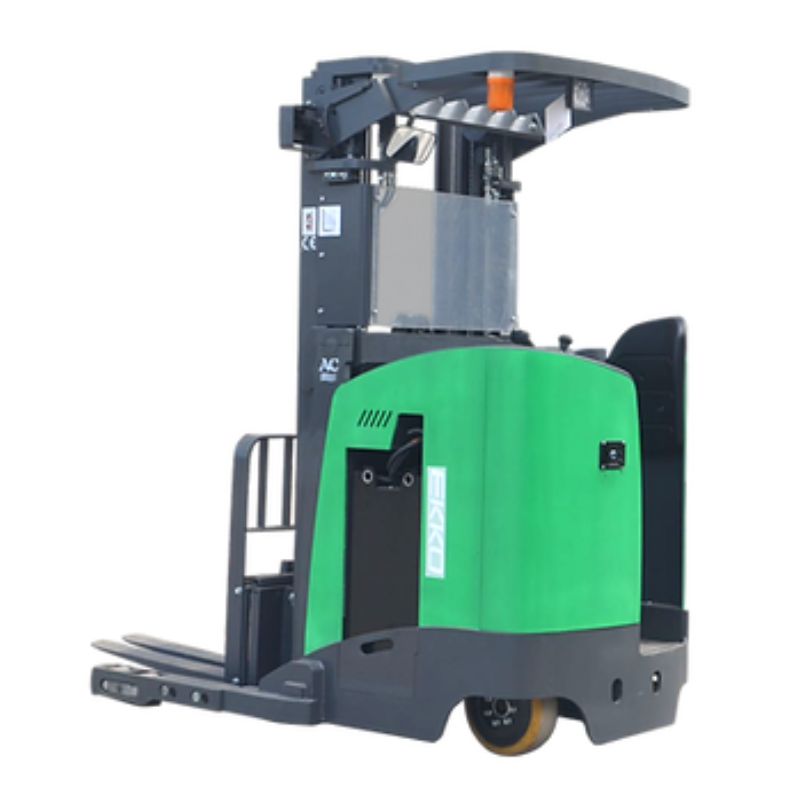

EKKO Lift EK18RR-196Li Lithium Reach Truck Back Left Side View with Free Shipping

The EK18RR-196Li is Maneuverable in Tight Spaces, and Comfortable All Day.

  • Operators stand inside a compact 54.72" wide chassis with EPS (Electronic Power Steering) and a 75" turning radius, making it ideal for dense storage configurations.
  • With ergonomic controls, side-shifting forks, and a Curtis® controller, it minimizes fatigue and maximizes accuracy, no matter the aisle or load.

Built from Steel, Powered by Intelligence.

  • The EK18RR-196Li is built from robotically welded steel and reinforced with German AC motors to handle repeated loads, directional shifts, and hard floor transitions.
  • It includes a 48VDC/200A charger, triple mast, and all the premium performance tech you'd expect from a high-end reach truck.

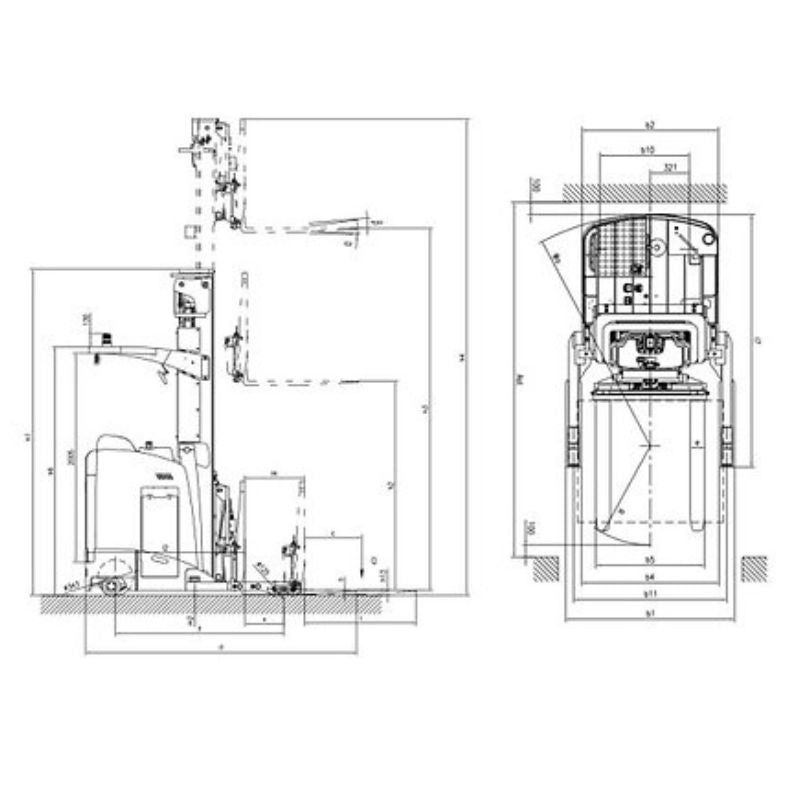

EKKO Electric EK18RR-196Li Reach Jack Dimensions

Important Product Specifications.

Model EK18RR-196Li
Load Capacity 4,000 lbs
Lift Height 196" (16.33 ft)
Reach Distance 22.44"
Fork Size 45" × 4.72" × 1.58"
Fork Width (Adjustable) Up to 35.04"
Turning Radius 75"
Free Lift 53.15"
Drive Motor 48V / 6,000W
Lift Motor 48V / 11,000W
Battery 48V / 350Ah Lithium
Charger 440V / 48VDC / 200A (3 Phase)
Service Weight 8,700 lbs
Warranty 3 Year Manufacturer Warranty

What's Included with the EKKO EK18RR-196Li Lithium Reach Truck?

  • EKKO EK18RR-196Li Reach Truck (Fully Assembled)
  • Triple Mast with 196" Lift Height
  • EPS Steering + Curtis® Controller
  • Side-Shifting Forks + 3-Way Valve
  • 48V / 350Ah Lithium Battery (Pre-installed)
  • High-Speed Industrial Charger
  • Polyurethane Wheels + Reinforced Frame
  • 3-Year Limited Warranty

Common Questions About the EK18RR-196Li Reach Truck.

How does lithium power improve this reach truck?

You get faster charging, no maintenance, and longer runtime compared to lead-acid. It’s ideal for multi-shift work.

Will this work in narrow aisles?

Yes. The compact 54.72" width and 75" turning radius make it a top performer in tight, vertical storage environments.

Is the charger included?

Absolutely, a 440V 3-phase / 48VDC 200A charger is included with every purchase.

What’s the max height it can reach?

This model reaches up to 196 inches (16.33 feet), with a 53" free lift for confined environments.

EKKO EK18RR-196Li Lithium Reach Truck Product Manuals

EKKO Lift Manufacturer Warranty

EK18RR-196Li Product Brochure
