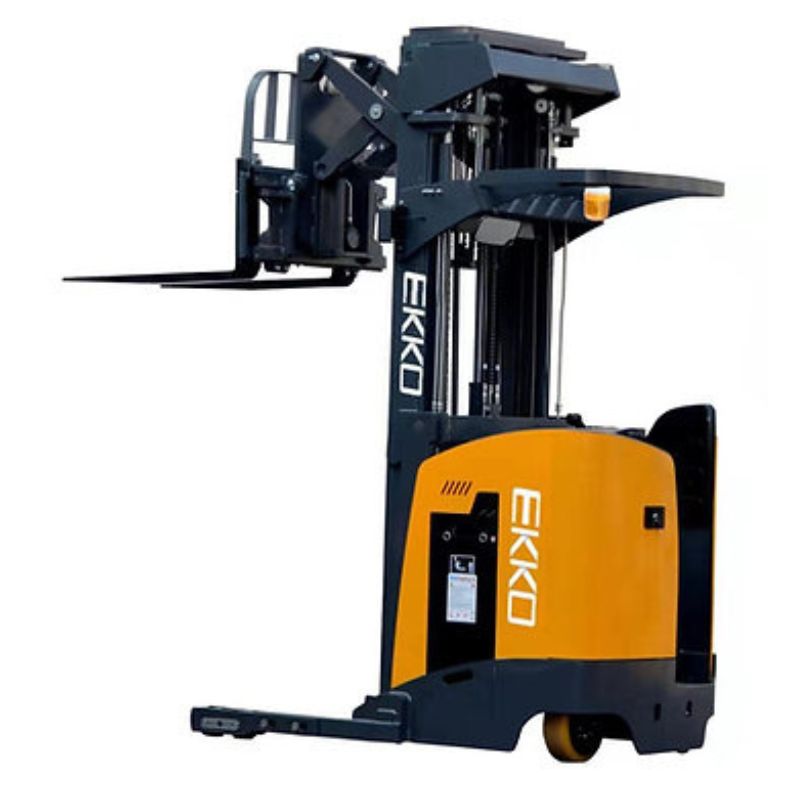

EKKO 196" Lift Stand-up Narrow Aisle Reach Truck with 4000lb Capacity EK18RRL

Maximize Aisle Space with the EKKO EK18RRL Stand-Up Reach Truck.

The EKKO EK18RRL is purpose-built for high-capacity lifts in narrow aisle environments, combining forklift-grade performance with reach truck precision.
Designed for stand-up operation, it keeps your warehouse team nimble while powering through racks up to 196 inches high.

With a 4,000 lb capacity, 22.44" reach, and 3-way side-shifting forks, this truck is engineered to perform where space is limited and uptime is critical.

196" Lift Height, Triple Mast Power & Deep Rack Reach.

Whether you're stacking pallets or pulling inventory from elevated shelves, the EK18RRL's triple mast and 53.15" of free lift provide smooth, stable height advantage without unnecessary mast extension.
Pair that with 22.44" of forward reach and side-shifting forks, and you’ll move product faster and straighter—no re-alignment needed.

Built for Operators. Tuned for Tight Turns.

The stand-up cabin, EPS steering, and 75" turning radius make this reach truck perfect for navigating tight aisle layouts.
Operators benefit from intuitive Curtis® controls, ergonomic handles, and a smooth ride on polyurethane wheels designed for warehouse surfaces.

48V Power System with Long-Shift Endurance.

At its core is a 48V/420Ah industrial battery, paired with a 48V/11kW lift motor and 6kW drive motor for rapid response under full load.
The 48V/65A charger is included, ensuring quick recharges and zero downtime—perfect for multi-shift facilities or demanding pick environments.

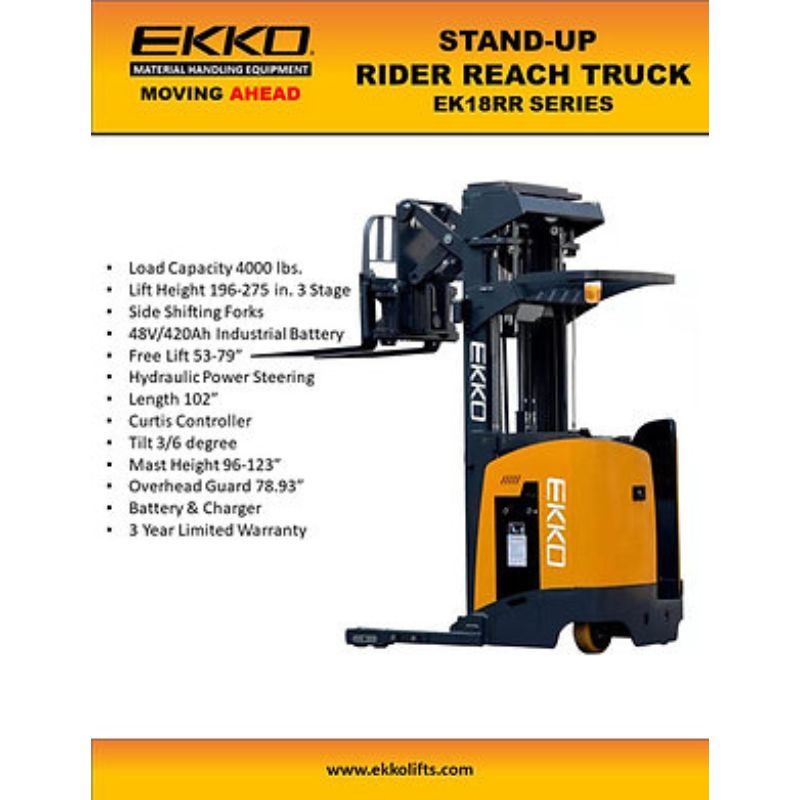

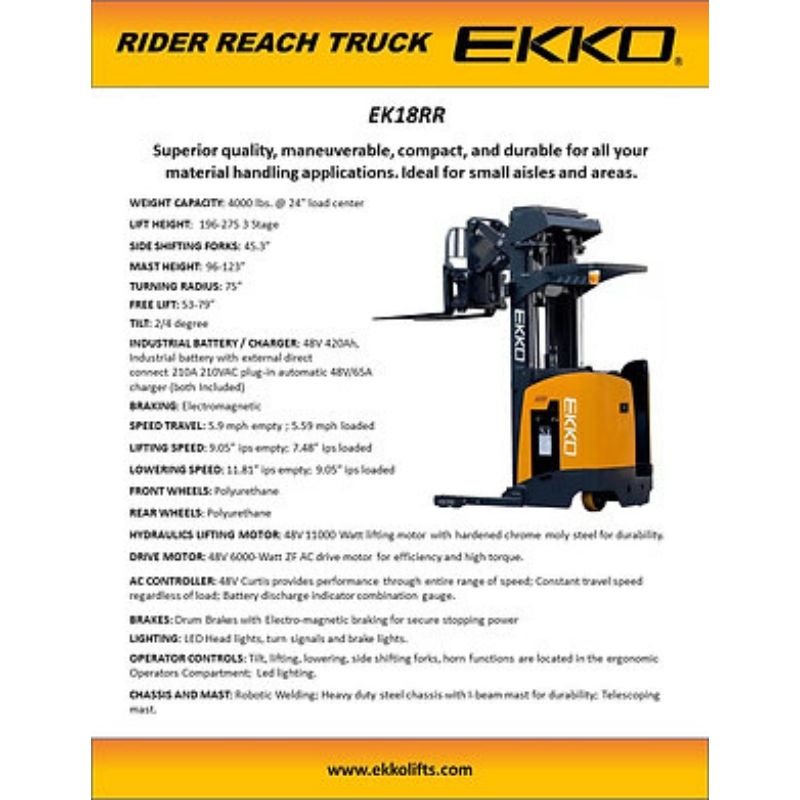

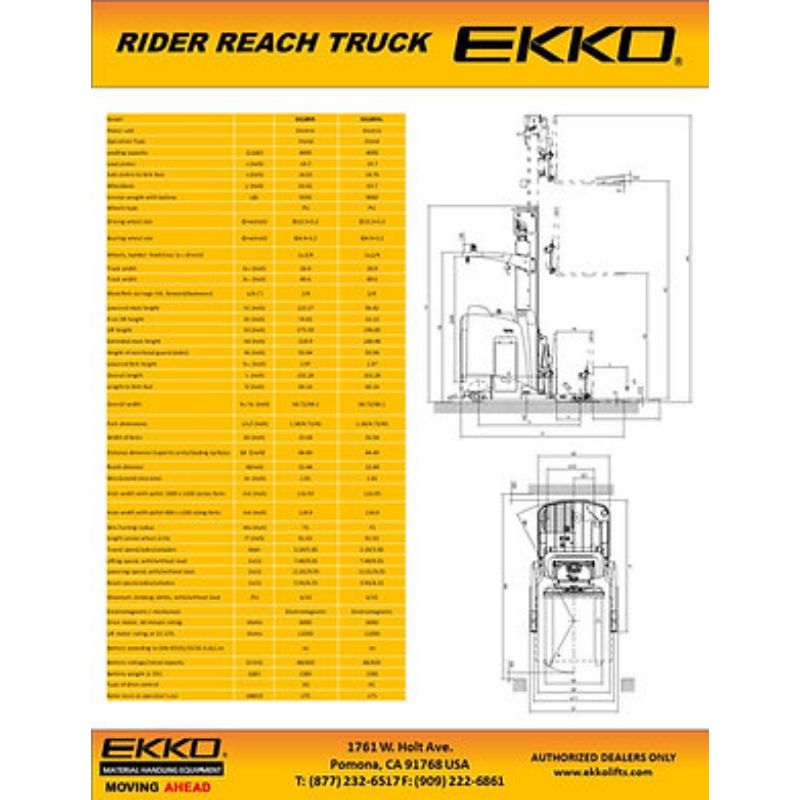

Product Specifications

What’s Included

• EKKO EK18RRL Narrow Aisle Reach Truck

• Triple Mast with 196" Lift Height

• Stand-Up Cabin Design with EPS Steering

• Side-Shifting Forks + 3-Way Hydraulic Valve

• 48V / 420Ah Battery (Pre-installed)

• 48V / 65A Charger (480V Ready)

• Ergonomic Controls + Curtis® Drive System

• Steel Body with Robotic Welding

• 3-Year Limited Warranty

Common Questions About the EK18RRL

Can this reach truck handle narrow warehouse aisles?
Yes! It features a 75” turning radius, a compact 54.72” width, and stand-up operation, making it ideal for narrow aisle environments.

Does it include a battery and charger?
Absolutely—a 48V/420Ah battery and 48V/65A charger come standard with every unit.

Is this a sit-down or stand-up reach truck?
This is a stand-up reach truck, offering better visibility and faster in-and-out operation, ideal for high-traffic warehouse lanes.

How does it compare to traditional forklifts?
It offers superior maneuverability, reach distance, and height capability in confined spaces where standard forklifts fall short.

Ready to Upgrade to High-Capacity Reach in Tight Spaces?

The EK18RRL is your all-in-one solution for high-reach pallet handling in space-conscious warehouses.
Experience the lift power of a forklift with the precision of a reach truck—and get more done without expanding your floor plan.
Add the EK18RRL to your fleet today.
