EKKO 216" Lift Full Powered Straddle Stacker with 4400lb Capacity EB16EA

EKKO 216" Lift Full Powered Straddle Stacker with 4400lb Capacity EB16EA

EKKO

$17,278.00
Free Shipping. Lifetime Returns.
Availability: Translation missing: en.general.icons.icon_check_circle icon In Stock
Pre-Approved Financing Available. See If You Qualify.

Notify me when back in stock

Heavy-Duty Performance Meets High-Lift Precision with the EKKO EB16EA Straddle Stacker with 216" Triple Mast Lift.

Need serious height, rock-solid capacity, and effortless steering?

The EKKO EB16EA 216" Lift Full-Powered Straddle Stacker offers unmatched versatility with a 4400 lb. load capacity, electric power steering (EPS), and a triple mast for maximum vertical reach, all built for demanding warehouse operations.

Lift Heavy Weights with Ease

4,400lb weight capacity.

Tilt Forks Icon

24V/210Ah industrial battery system for extended life.

Warranty Icon

3 Year Manufacturer Warranty included with every product.

Caster Wheel Icon

Polyurethane wheels built to last a lifetime.

The EKKO EB16EA Offers 216 Inches of Pure Lifting Power for Tight Spaces.

  • Raise heavy pallets to new heights with a max lift of 216 inches (18 ft.).
  • The triple mast system offers an industry-leading 76.25-inch free lift, enabling stacking in trailers, racking systems, and mezzanines without extending the mast.

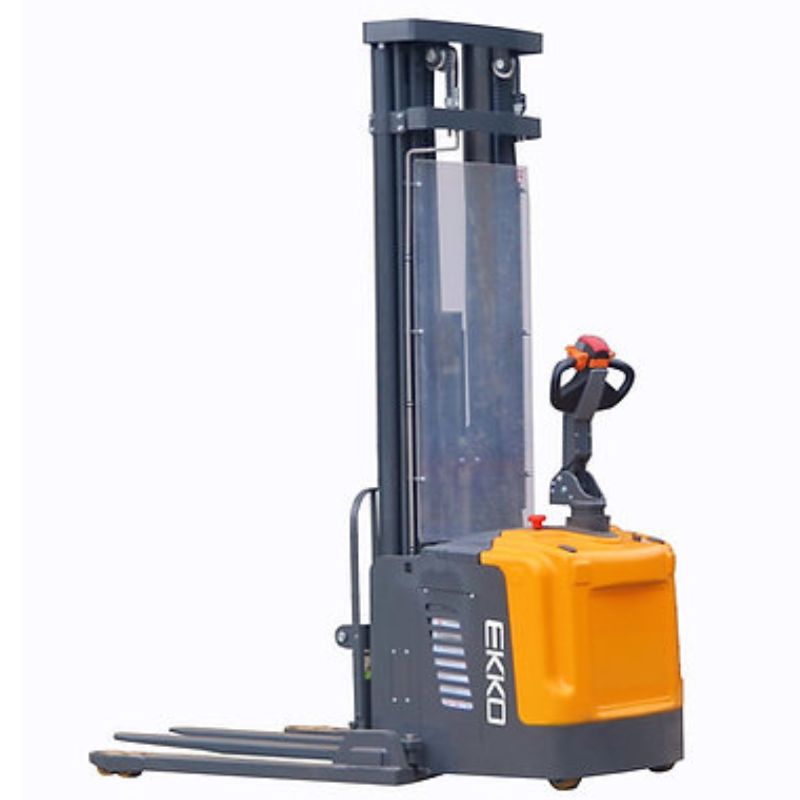

EKKO Lift EB16EA Stacker Back Left Side View

Navigate the EB16EA with Precision Using EPS and Curtis Controls.

  • This stacker comes equipped with Electric Power Steering (EPS) and a Curtis Instrument Controller for ultra-responsive handling.
  • Its 3kW AC drive motor and 69" turning radius provide the agility of a walkie stacker with the performance of a sit-down forklift, ideal for tight aisles and quick lane changes.

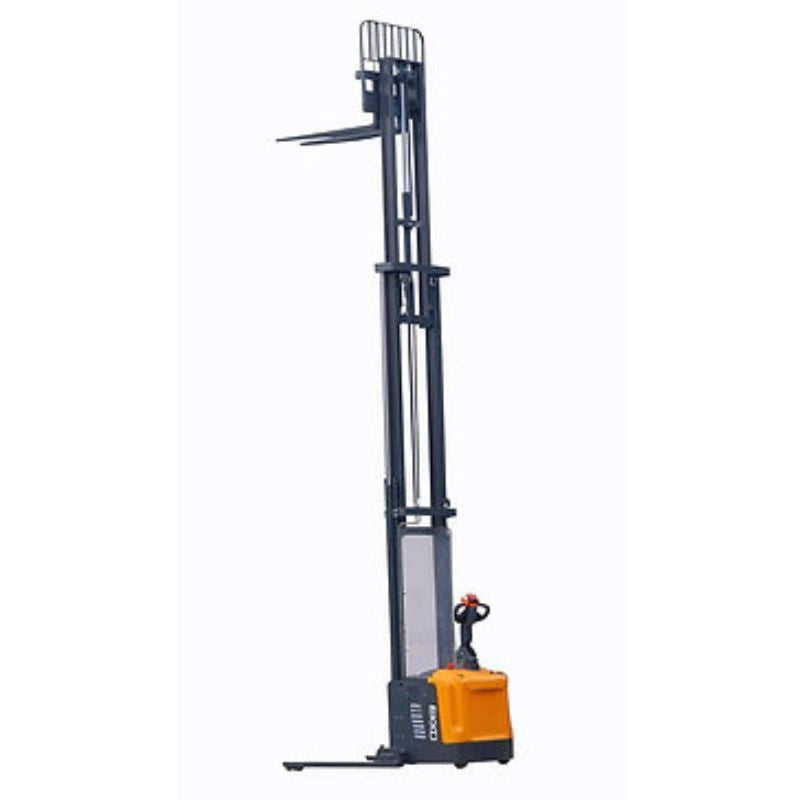

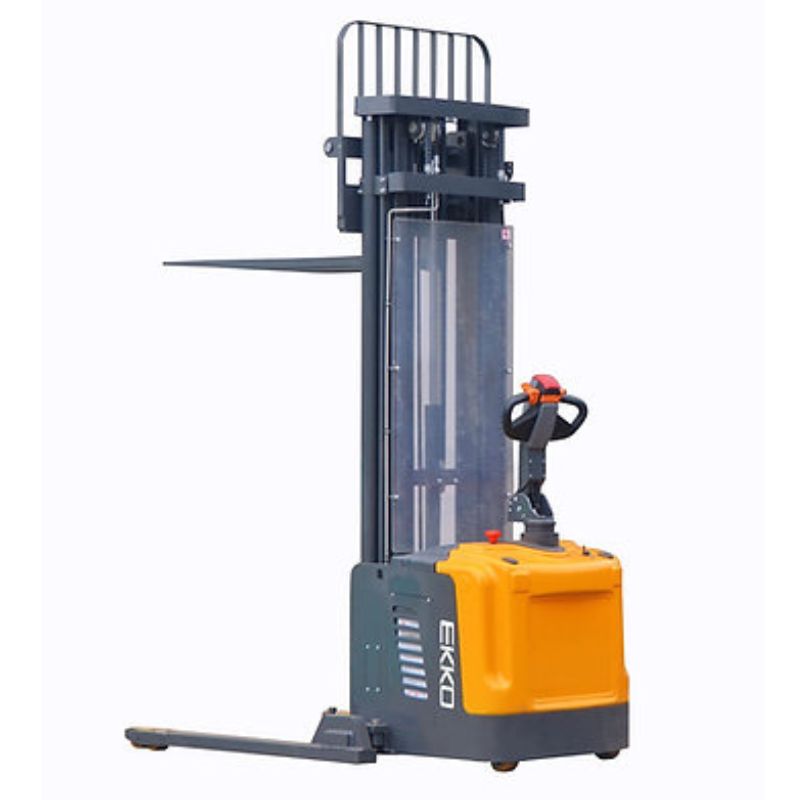

EKKO Lift EB16EA Stacker Back Left Side View Extended View

Industrial Grade Battery Power That Keeps You Moving.

  • A 24V/210Ah industrial battery and 30A onboard charger deliver long-lasting, efficient power.
  • With a 3kW lift motor, this machine can lift faster and lower smoother, handling daily shifts without interruption.
  • Rugged polyurethane wheels ensure smooth travel across concrete floors.
EKKO EB16EA Pallet Stacker with Free Shipping

Important Product Specifications.

Model EB16EA
Load Capacity 4,400 lbs
Free Lift Height 76.25 in
Raised Lift Height 216 in (18 ft.)
Lowered Fork Height 1.58 in
Fork Length 45.28 in
Adjustable Fork Width 9.8 – 31.5 in
Adjustable Leg Width 38.06 – 51.81 in
Turning Radius 69.09 in
Battery / Charger 24V/210Ah / 24V/30A
Drive Motor / Lift Motor 3kW AC / 3kW
Service Weight 3,542 lbs
EPS Steering Yes
Warranty 3 Year Manufacturer Warranty

What's Included with the EKKO EB16EA Pallet Stacker?

  • EKKO EB16EA 216" Triple Mast Straddle Stacker
  • 24V/210Ah Industrial Battery
  • Integrated 24V/30A Charger
  • Curtis Controller + Electric Power Steering
  • Adjustable Forks & Legs
  • AC Drive + Lift Motors
  • Ergonomic Handle with Controls
  • Fully Welded Steel Frame
  • 3-Year Limited Warranty

Common Questions About the EKKO EB16EA Stacking Machine.

Can this lift heavy loads at full height?

Yes. The EB16EA is rated to handle 4,400 lbs, even at its full 216" extension.

Does it require a separate charger?

No, a 24V/30A internal charger is included and designed for daily charging routines.

Is this stacker maneuverable in tight warehouses?

Absolutely. With EPS steering, a 69" turning radius, and precision control, it excels in confined aisles.

EKKO EB16EA Lithium Powered Pallet Stacker Product Manuals

EKKO Lift Manufacturer Warranty

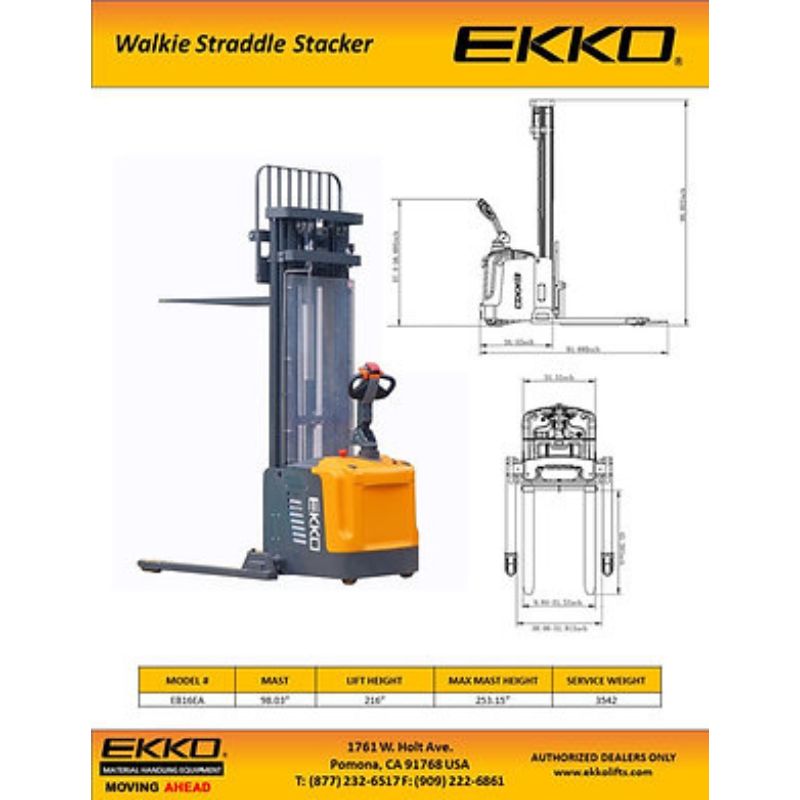

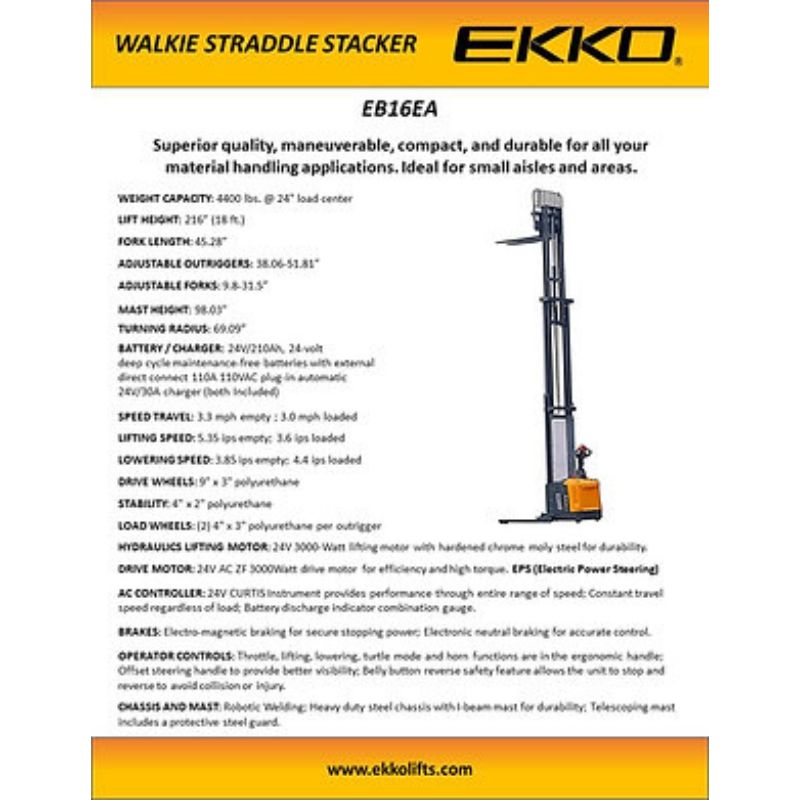

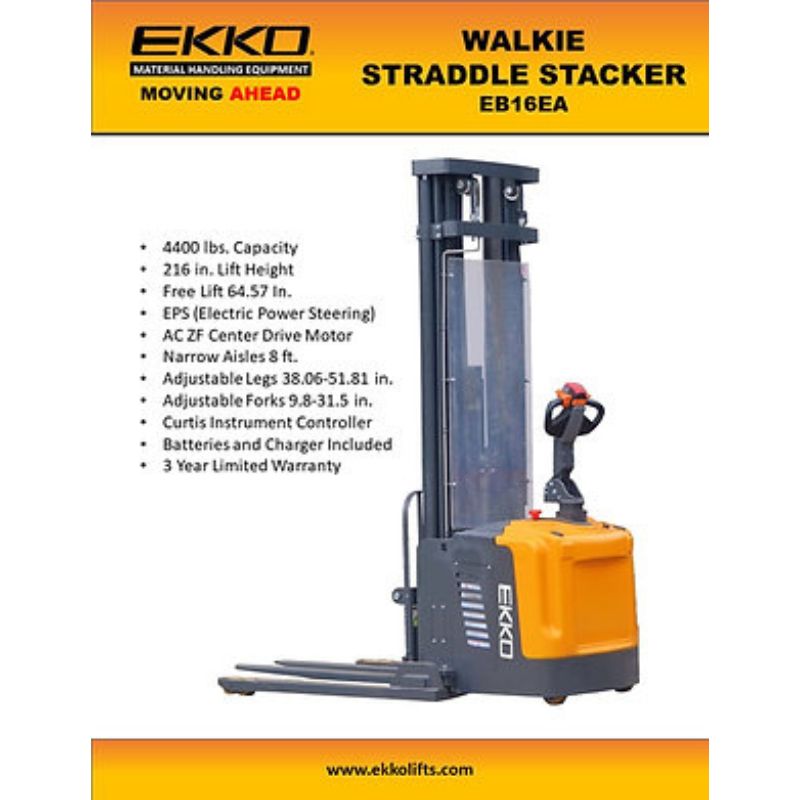

EB16EA Product Brochure
