EKKO 275" Lift Stand-up Narrow Aisle Reach Truck with 4000lb Capacity EK18RR

EKKO 275" Lift Stand-up Narrow Aisle Reach Truck with 4000lb Capacity EK18RR

EKKO

$50,399.00
Free Shipping. Lifetime Returns.
Availability: Translation missing: en.general.icons.icon_check_circle icon In Stock
Pre-Approved Financing Available. See If You Qualify.

Notify me when back in stock

Conquer Tall Racks in Tight Aisles with the EKKO EK18RR Reach Truck.

The EKKO EK18RR is a stand-up narrow aisle reach truck built for serious height and serious capacity, delivering 4000 lbs of lifting power and a massive 275" (22.91 ft) lift height.

  • Whether you're operating in high-bay warehousing, deep racking systems, or space-constrained pick zones, this machine helps you reach more in less time without expanding your footprint.
  • With a triple mast, 22.44" of reach, and side-shifting forks, the EK18RR turns tight corners into high-output lanes.
Lift Heavy Weights with Ease

4,000lb weight capacity.

Battery Icon

48V/420Ah battery gets you through the whole work day.

Hydraulic Lift Icon

Electric and hydraulic lift makes this reach truck helpful everywhere in the warehouse.

Caster Wheel Icon

Polyurethane wheels built to last a lifetime.

The EKKO EK18RR Reaches Higher Than Ever with 275" Triple Mast Performance.

Most reach trucks top out far below 23 feet.

  • The EK18RR goes further, allowing operators to pull or place pallets near the ceiling with full stability and tilt control.
  • The 79.92" of free lift allows you to operate within tight height limits like trailer interiors or mezzanines, without losing vertical functionality.

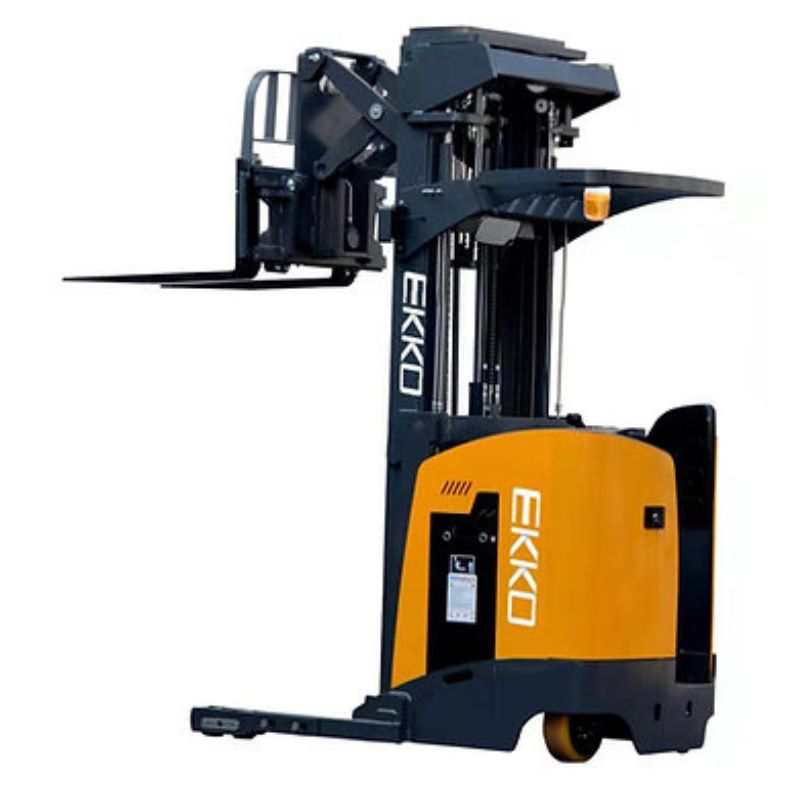

EKKO Lift EK18RR Electric Reach Truck Back Left Side View with White Background

The EKKO EK18RR Stand-Up Reach Truck is Designed for Tight Turns and Full-Day Comfort.

  • With a 75" turning radius, stand-up cab, and Curtis® EPS steering, this unit excels in tight aisles and multi-shift operations.
  • Your operators stay productive thanks to ergonomic handle controls, wide visibility, and intuitive movement powered by German AC drive motors and electromagnetic brakes.

48V Battery Power for High-Lift Demands in Busy Warehouse Operations.

  • Backed by a 48V/420Ah industrial battery, the EK18RR is built for heavy vertical travel and long haul operation.
  • Its 11kW lift motor, 6kW drive motor, and included 48V/65A charger ensure this reach truck performs shift after shift with minimal downtime and maximum throughput.
EKKO Electric EK18RR Stand Up Reach Truck with Free Shipping

Important Product Specifications.

Model EK18RR
Load Capacity 4,000 lbs
Lift Height 275" (22.91 ft)
Reach Distance 22.44"
Fork Size 45" × 4.72" × 1.58"
Fork Width (Adjustable) Up to 35.04"
Turning Radius 75"
Free Lift 79.92"
Drive Motor 48V / 6,000W
Lift Motor 48V / 11,000W
Battery 48V / 420Ah (Included)
Charger 48V / 65A (Included)
Service Weight 9,330 lbs
Warranty 3 Year Manufacturer Warranty

What's Included with the EKKO EK18RR Stand-Up Reach Truck?

  • EKKO EK18RR Reach Truck (Fully Assembled)
  • Triple Mast with 275" Lift Height
  • Stand-Up Operator Cabin + EPS Steering
  • Side-Shifting Forks with 3-Way Valve Control
  • Curtis® Controller + Ergonomic Handle Setup
  • 48V / 420Ah Battery (Pre-installed)
  • 48V / 65A High-Speed Charger
  • Polyurethane Tires + Steel Welded Frame
  • 3-Year Limited Warranty

Common Questions About the EKKO EK18RR Reach Truck.

How high can the EK18RR reach?

It lifts up to 275" (22.91 ft). Perfect for high-bay racking and multi-level warehouse operations.

Is it really narrow aisle compatible?

Yes. With a stand-up design, tight 75" turn radius, and just 54.72" width, it’s made for aisle-constrained warehouses.

Does it come with a battery and charger?

Absolutely, a 48V/420Ah battery and 48V/65A charger are included with every unit.

What kind of surfaces can it handle?

The EK18RR features polyurethane wheels for smooth, scuff-free operation on warehouse flooring.
