Vestil Steel Electric Hydraulic Box Dumper with 36in Dump Height HBD-36

Vestil Steel Electric Hydraulic Box Dumper with 36in Dump Height HBD-36

Vestil

$7,299.90
Free Shipping. Lifetime Returns.
Capacity
Availability: Translation missing: en.general.icons.icon_check_circle icon In Stock
Pre-Approved Financing Available. See If You Qualify.

Notify me when back in stock

Upgrade material handling with the Vestil HBD-36 Electric Hydraulic Box Dumper.

The Vestil Steel Electric Hydraulic Box Dumper HBD-36 is expertly designed for controlled, safe dumping of materials from boxes, crates, and other containers.

  • It is built for easy pallet truck loading and unloading while accommodating a wide range of container heights with its adjustable retaining bar.
  • The internal electric/hydraulic power unit features a hand-held push-button control for quick and easy operation.
Lift Heavy Weights with Ease

2000lb, 4000lb, and 6000lb weight capacities.

Tilt Forks Icon

135° of tilt capability.

Emergency Key System Icon

Protective mesh side screens included for operator safety.

Customizable Width

36in dump height and 45° dump angle.

Maximize safety and control with the Vestil 36 Inch Hydraulic Box Dumper.

  • This heavy-duty box dumper features a 135-degree maximum rotation travel, which can be stopped at any point during the dump cycle for added control.
  • Protective mesh side screens are included on both sides to improve operator safety during the entire dumping process.
  • The complete electric hydraulic system ensures reliable and smooth tilting performance, even under heavy daily use.

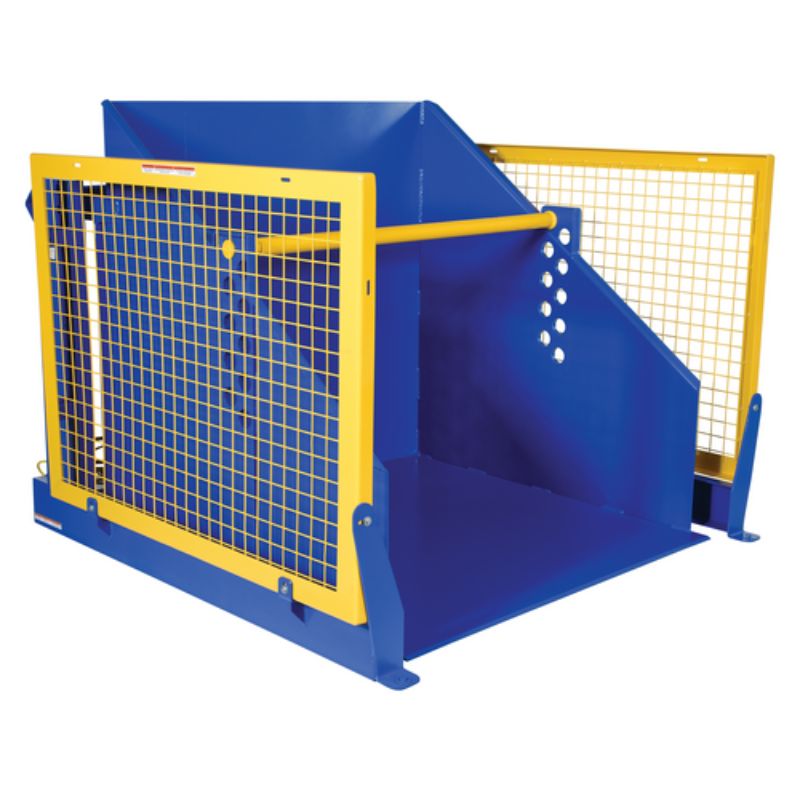

Left Side View of Vestil Electric Hydraulic 36in Box Dumper Mesh Side Screens

Count on the durability and performance of the HBD-36 Box Dumper.

  • Constructed with heavy-duty welded steel, the HBD-36 offers unmatched strength and long-term reliability for demanding work environments.
  • A standard internal power unit minimizes external components, while a 24V hand-held control provides responsive control over operations.
  • This box dumper's universal design can handle many types and sizes of containers, improving your warehouse's flexibility and productivity.

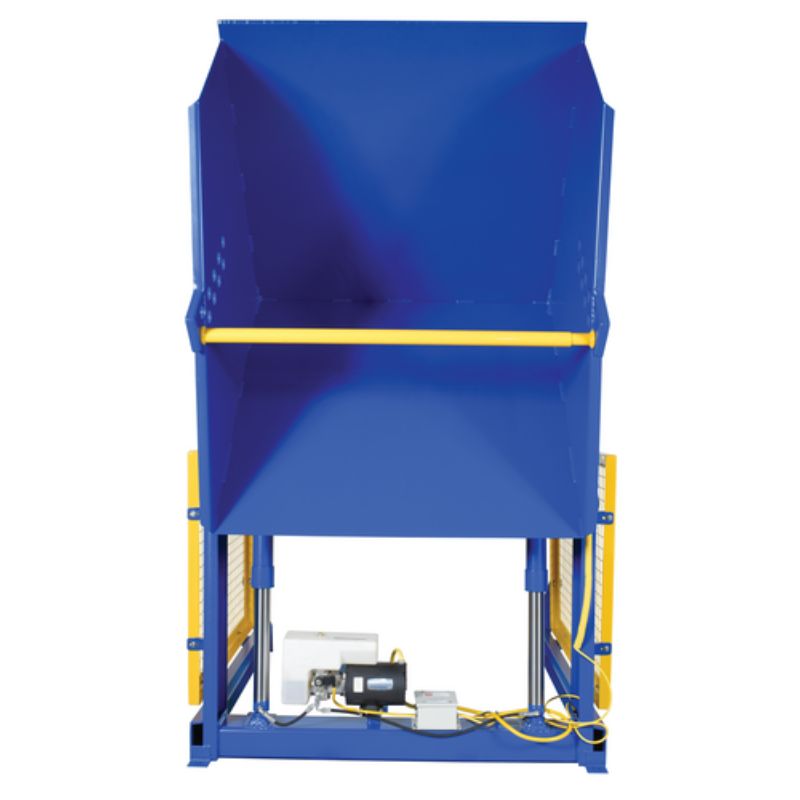

Front Side of HBD-36 Box Dumper Tilted Fully

Improve loading efficiency with the Vestil Steel Electric Hydraulic Box Dumper.

  • With a 36-inch dump height and a 45-degree dump angle, materials are easily and ergonomically discharged.
  • The dumper operates on 460V, 3-Phase power and is built to withstand up to 15 duty cycle starts per hour, ensuring continuous operation across shifts.

Ideal for warehouses, manufacturing facilities, and distribution centers, this unit is a key upgrade for handling bulk materials safely and efficiently.

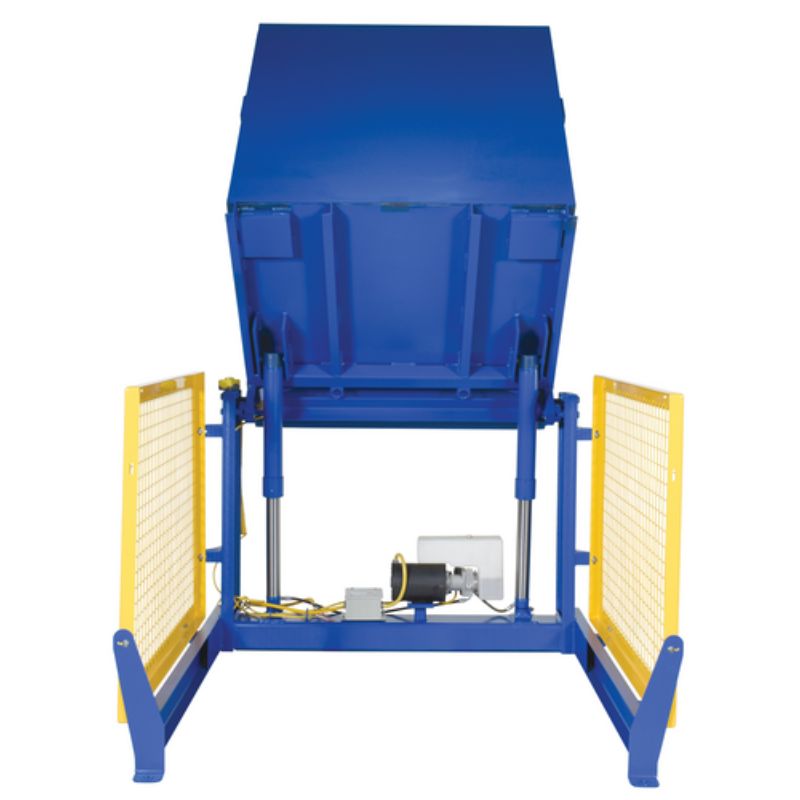

Back side view of Vestil HBD-36 Dump Angle

Important Product Specifications.

Capacity Options 2000lb, 4000lb, 6000lb
Maximum Dump Height 36 in
Maximum Rotation Travel 135 Degrees
Dump Angle 45 Degrees
Usable Chute Size (W x L) 52 in x 50 in
Chute Reach at Full Rotation 10 in
Hold Down Range 18 in to 36 in
Power Source Electric Hydraulic, 460V/3 Phase
Motor Horsepower 2 HP
Overall Dimensions (W x L x H) 69 in x 68.5 in x 53.5 in
Weight 1,615 lb
Warranty 1 Year Limited Parts Warranty

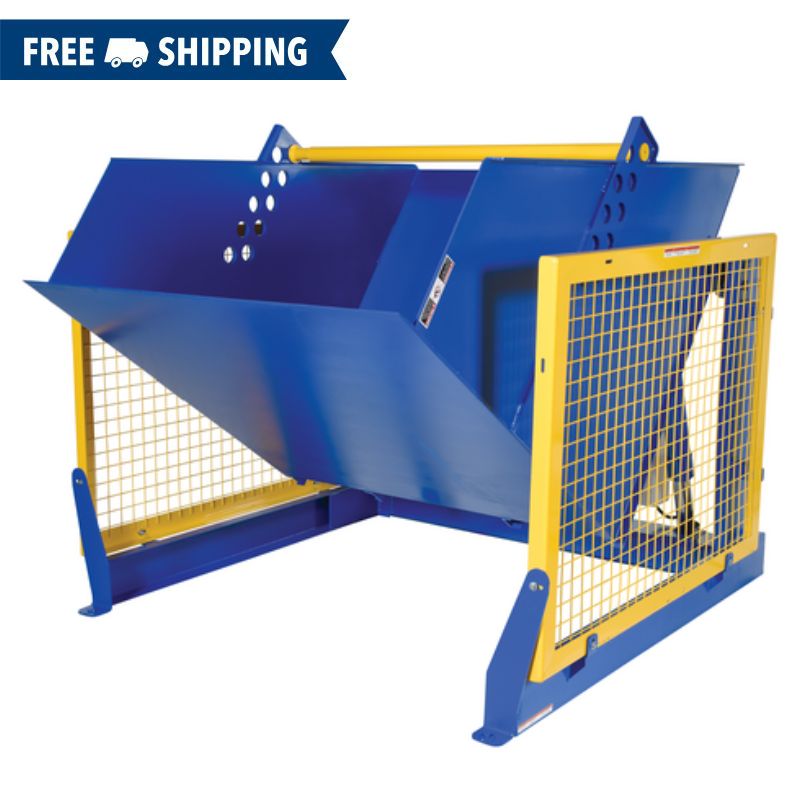

Vestil HBD-36 Box Dumper with Free Shipping

What’s Included with Your Vestil Electric 36in Box Dumper?

  • Fully assembled Vestil HBD-36 Electric Hydraulic Box Dumper
  • Internal hydraulic power unit with push-button control
  • Protective mesh safety screens on both sides
  • Adjustable retaining bar for a wide range of container heights

Common Questions About the Vestil Electric Hydraulic 36in Box Dumper.

What types of containers can the Vestil HBD-36 handle?

The universal chute design can dump many sizes and types of boxes, crates, and containers.

How is the dump cycle controlled?

An included 24V hand-held control operates the hydraulic tilt for easy, controlled dumping.

Does the unit have safety features?

Yes, safety mesh screens are built into both sides, and rotation can be stopped at any point for added operator safety.

Is installation complicated?

No, the HBD-36 ships fully assembled and only requires electrical hookup to be ready for use.
