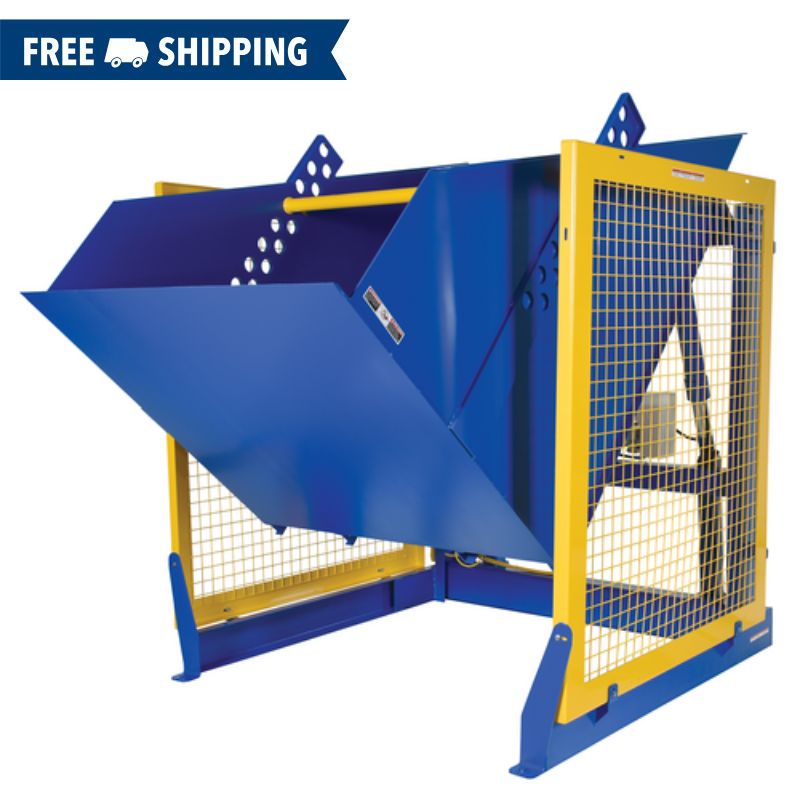

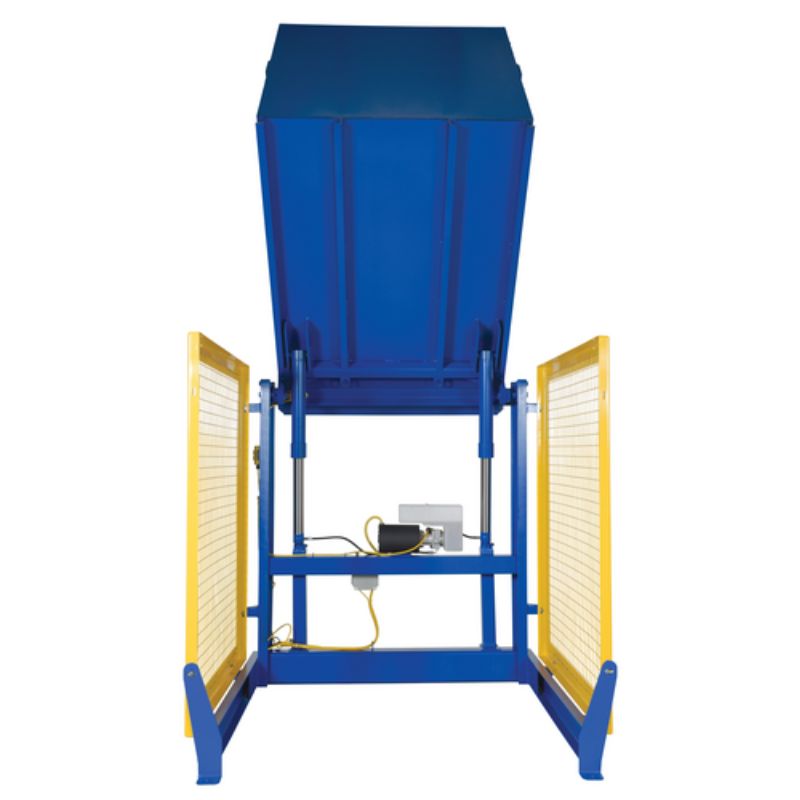

Vestil Steel Electric Hydraulic Box Dumper with 60in Dump Height HBD-60
Vestil
✓ Free Shipping on Orders Over $50
✓ Direct-To-Owner Service
✓ Contact for Bulk-Order Pricing
✓ Estimated Lead Time: 16-40 Days
✓ 365 Day Manufacturer Warranty Included
Simplify heavy material handling with the Vestil HBD-60 Hydraulic Box Dumper.
The Vestil Steel Electric Hydraulic Box Dumper HBD-60 offers powerful, controlled dumping for boxes, crates, and bulk containers.
- Its adjustable retaining bar accommodates various container heights, making it ideal for pallet truck loading and unloading.
- Each variant (2,000 lb, 4,000 lb, and 6,000 lb capacities) offers the same efficient 60" dump height but gives you flexibility based on your operational load requirements.
2000lb, 4000lb, and 6000lb weight capacities.
135° of tilt capability.
Protective mesh side screens included for operator safety.
60in dump height and 45° dump angle.
Operate with precision and safety using the Vestil 60 Inch Hydraulic Box Dumper.
- The HBD-60 features 135 degrees of maximum rotation travel, with the ability to stop at any point during the dumping cycle.
- Safety mesh screens are installed on each side of the dumper to protect workers during operation.
- Push-button control is standard with an 8-foot handheld controller, offering smooth, quick adjustments.
Rely on rugged construction with the Vestil 60" Box Dumper series.
- Heavy-duty welded steel construction finished in blue and yellow ensures long-term warehouse performance.
- A powerful 2 HP motor running at 460V/3 Phase guarantees strong and consistent dumping cycles.
All capacity options are built to the same industrial-grade standards, making them reliable across many facility types.
Streamline container emptying with the Vestil HBD-60's flexible design.
- The 60-inch dump height, 45-degree dumping angle, and 10-inch chute reach make it perfect for loading conveyors, hoppers, or production lines.
Whether you choose the 2,000 lb, 4,000 lb, or 6,000 lb version, you’ll benefit from ergonomic unloading that protects both your staff and your workflow.
Important Product Specifications.
| Capacity Options | 2000lb, 4000lb, 6000lb |
| Maximum Dump Height | 60 in |
| Maximum Rotation Travel | 135 Degrees |
| Dump Angle | 45 Degrees |
| Usable Chute Size (W x L) | 52 in x 50 in |
| Chute Reach at Full Rotation | 10 in |
| Hold Down Range | 18 in to 50 in |
| Power Source | Electric Hydraulic, 460V/3 Phase |
| Motor Horsepower | 2 HP |
| Overall Dimensions (W x L x H) | 69 in x 68.5 in x 77 in |
| Weight | 1,934 lb |
| Warranty | 1 Year Limited Parts Warranty |
What’s Included with Your Vestil Electric 60in Box Dumper?
- Fully assembled Vestil HBD-60 Electric Hydraulic Box Dumper
- Internal electric hydraulic power unit with 8 ft push-button hand control
- Protective mesh side screens for enhanced safety
- Adjustable container retaining bar for versatile container handling
Common Questions About the Vestil Electric Hydraulic 60in Box Dumper.
What types of containers can the HBD-60 handle?
It is designed to accommodate boxes, crates, bulk containers, and similar load types.
How do I choose between the 2,000 lb, 4,000 lb, and 6,000 lb models?
Choose the capacity that matches or slightly exceeds your heaviest container loads to ensure safe and efficient operation.
Does the dumper come fully assembled?
Yes, it ships fully assembled. Only electrical connection is needed upon delivery.
How does the dumper protect worker safety?
Protective mesh screens, controlled rotation, and stop capability at any point ensure safe operations at all times.
