Orion Flex LPD Low Profile Deluxe Turntable Pallet Wrapper

Orion Flex LPD Low Profile Deluxe Turntable Pallet Wrapper

Orion

$0.00
Free Shipping. Lifetime Returns.
Availability: Translation missing: en.general.icons.icon_check_circle icon In Stock
Pre-Approved Financing Available. See If You Qualify.

Notify me when back in stock

Tired of Wasted Film and Inconsistent Load Containment? The Orion Flex LPD Semi-Automatic Stretch Wrapping System Solves It Fast.

If you’re still relying on manual wrapping or low-efficiency wrappers that waste film and fail to secure loads, the Orion Flex LPD Series is your game-changer.

  • Built for high-performance environments, this LPD stretch wrapper delivers precise, consistent wrap force while reducing film consumption with its patented S-Carriage design.

Whether you're wrapping fragile products or dense pallets, it ensures stability without crushing corners, all while making your operators' jobs easier.

Lift Heavy Weights with Ease

6,000lb weight limit

Loads in One Hour Icon for Orion RTA Tower Wrapper

Up to 15 wraps per minute

High Tech Screen on Orion Flex RTA Shrink Wrapper

7” Color IntelleVue HMI controller

Warranty Icon for Orion Flex RTA

5 year manufacturer warranty

Orion Flex LPD Stretch Wrapper Uses S-Carriage Film Tech to Cut Costs and Improve Wrap Precision.

At the core of the LPD semi-automatic stretch wrapping system is Orion’s S-Carriage InstaThread™ film delivery.

  • It delivers a 260% film pre-stretch, far more efficient than most competitors, and reduces film neckdown, giving you up to 15% more film yield per roll.
  • Your team gets stronger wraps, tighter loads, and less film waste without needing to manually adjust tension.

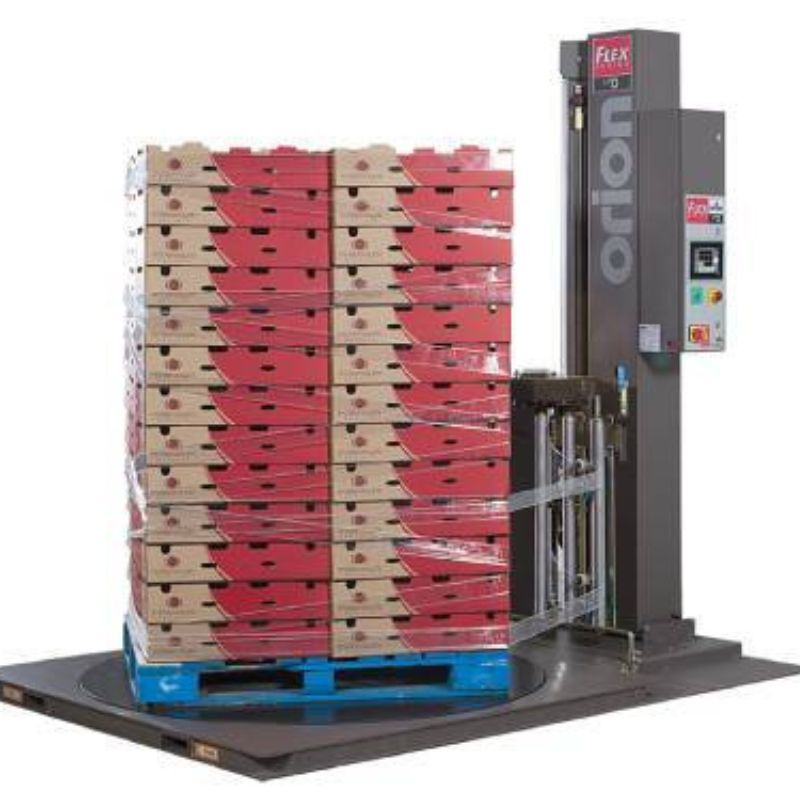

Orion LPD Shrink Wrap Machine With Wrapped Boxes

Orion Flex LPD Series Simplifies Wrapping with User-Friendly Controls and a Safer, Smarter Design.

  • The 7” IntelleVue HMI touch screen gives operators quick access to 9 programmable wrap recipes, putting full control at your fingertips.
  • Plus, the automatic force-to-load feature keeps film tension even across all load types—no manual tweaks required.
  • You’ll also appreciate the full surround deck that protects the 63” turntable while allowing safe, easy loading from pallet jacks, electric walkies, or forklifts.

The LPD Stretch Wrapper Is Built for Heavy-Duty Loads and Built to Last in Harsh Warehousing Conditions.

  • With a 6,000 lb. max load capacity and ring bearing turntable support, the Orion Flex LPD Series is designed to withstand continuous use in the toughest environments.

Unlike models with casters, the ring bearing base reduces wear and lowers maintenance needs.

  • The rugged tubular steel frame, AC motors, and optional 110” mast make this a long-term investment that grows with your facility.

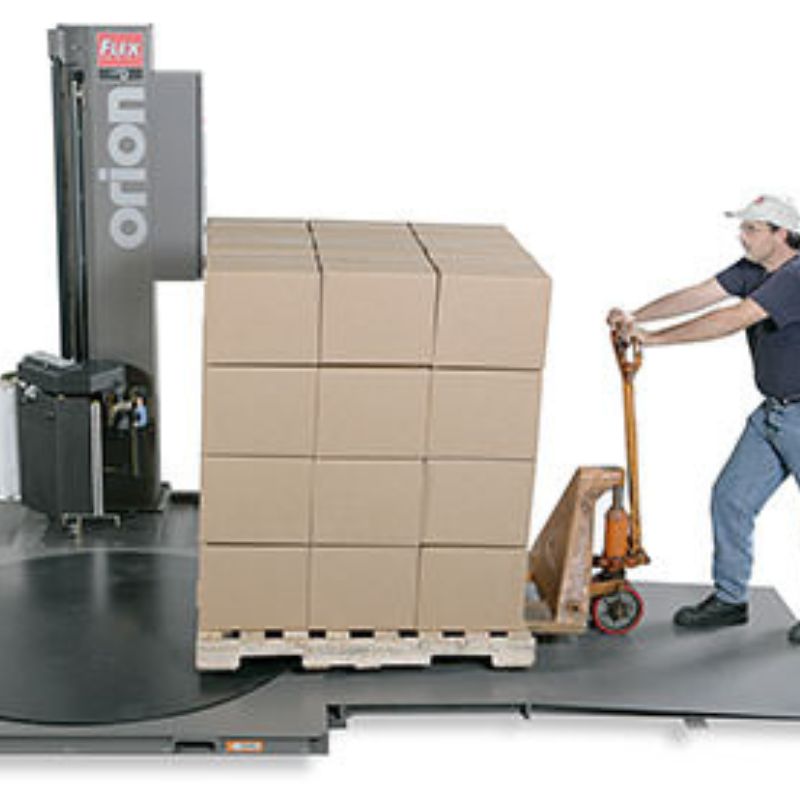

Automatic LPD Shrink Wrap Machine With Pallet Being Loaded On

Important Product Specifications.

Model Orion Flex LPD Series
Load Capacity 6,000lbs
Max Load Height 80" (110" optional)
Turntable Diameter 63"
Turntable Speed 15 RPM
Film Pre-Stretch 260%
Display 7” IntelleVue Color HMI
Frame Construction Heavy-duty welded tubular steel
Electrical 115V, 1PH, 60Hz, 20 Amp
Shipping Weight 2,550–2,650 lbs (depending on mast)
Warranty 5-Year Warranty

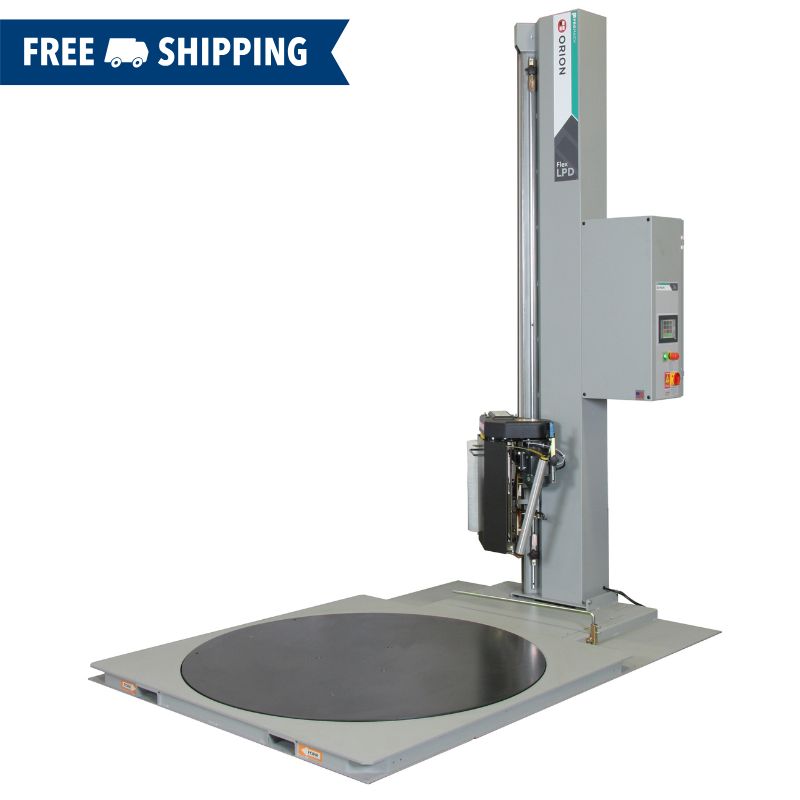

LPD Pallet Wrapper for Warehouses with White Background

What’s Included with the Orion Flex LPD Series?

  • Orion Flex LPD Turntable Base – Built-in surround deck for safe pallet jack loading.
  • S-Carriage InstaThread Film Delivery System – Maximize wrap consistency and reduce film usage.
  • 7” Color Touchscreen HMI – Program up to 9 custom wrap recipes with password protection.
  • Automatic Load Detection – Ensures even film force for every load size and shape.
  • AC Motors with Soft Start – Smooth performance that won’t damage fragile loads.
  • Heavy-Duty Steel Frame – Durable and field-upgradable to full automation.

Common Questions About The Orion Flex LPD Stretch Wrapper.

Can I load the Orion Flex LPD with a pallet jack?

Yes. The 63” turntable and full surround deck are specifically designed for easy pallet jack, electric walkie, or forklift loading.

How much film will I save with the S-Carriage system?

Thanks to the 260% pre-stretch and reduced neckdown, you can expect up to 15% more yield per roll compared to standard wrappers.

Can I upgrade this machine later to an automatic system?

Yes! The LPD features Orion’s universal base, which is field-upgradable to full automation (LPA model), giving you future-proof value.

Is the LPD suitable for oversized pallets?

Yes. Extended base and mast options are available to handle larger load dimensions.

Orion Flex LPD Semi-Automatic Stretch Wrapping System Manuals

Orion Flex LPD Semi-Automatic Stretch Wrapping System Brochure
