Vestil Steel Reciprocating Air/Oil Powered Tilt Master TM-AIR

Vestil Steel Reciprocating Air/Oil Powered Tilt Master TM-AIR

Vestil

$5,301.93
Free Shipping. Lifetime Returns.
Capacity
Availability: Translation missing: en.general.icons.icon_check_circle icon In Stock
Pre-Approved Financing Available. See If You Qualify.

Notify me when back in stock

Improve Material Handling Safety with the Vestil TM-AIR Tilt Master.

The Vestil Steel Tilt Master Reciprocating Air/Oil TM-AIR lifts, tilts, and positions filled tote boxes, baskets, and open-bottom pallets without the need for forklifts or lift tables.

This heavy-duty tilter functions as a transporter by quickly moving completed products between workstations, saving time and eliminating wait periods.

Available in three capacity models:

  • 2,000 lb
  • 4,000 lb
  • and 6,000 lb

The TM-AIR series offers flexibility to meet your operational needs.

Lift Heavy Weights with Ease

2000lb, 4000lb, and 6000lb weight capacity.

Tilt Forks Icon

90° of tilt capability.

Emergency Key System Icon

Tilt feature stabilizes uneven loads, helping to prevent accidents.

Customizable Width

Max rotated height of 33in, and lowered height of 3.5in.

Ergonomic Design for Operator Comfort and Efficiency.

  • The Tilt Master TM-AIR is engineered with a thin profile frame that allows operators to get closer to the load, minimizing bending and reaching.
  • It features a 90-degree tilt range for full ergonomic access, along with a folding ergonomic handle for easy steering and better control.
  • The standard floor lock ensures stability when loading or unloading at any tilt angle, protecting both users and materials.
TM-AIR Tilt Master Front Side View of Tilt Angle

Pneumatic Powered Tilt for Smooth, Controlled Lifting.

  • The air/oil-powered operation of the TM-AIR models provides precise, smooth tilting at the touch of a heel/toe foot treadle.
  • No electrical power source is needed, just a standard air supply for consistent performance.

Whether handling lighter loads or the heaviest pallets, all models (2,000 lb, 4,000 lb, and 6,000 lb capacities) share the same user-friendly pneumatic system for maximum reliability.

Man Pushing Tilt Pallet Jack TM-AIR with Load

Built for Daily Heavy-Duty Use with Durable Construction.

  • Constructed from heavy-duty steel and finished in a rugged blue powder coat, the Vestil TM-AIR is made to thrive in industrial environments.
  • The fixed fork width of 26 inches (outside dimension) fits standard open-bottom pallets and skids, and the phenolic wheels offer easy mobility even with fully loaded units.

Whether you’re streamlining warehouse, production, or packaging lines, the TM-AIR series delivers dependable ergonomic lifting and tilting day after day.

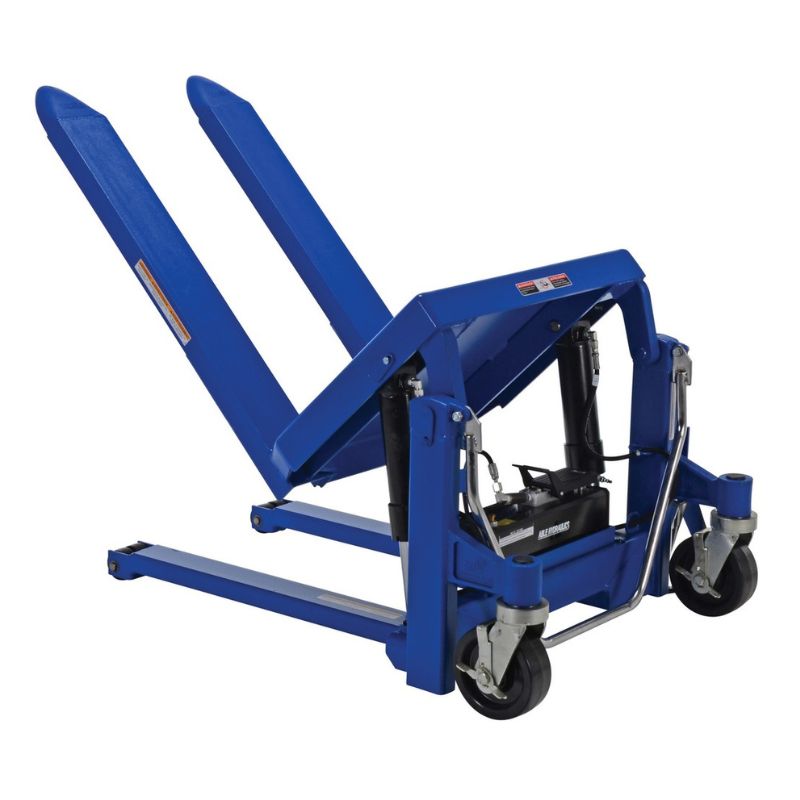

Back Left Side of Vestil Reciprocating Air Tilt Master

Important Product Specifications.

Available Capacities 2,000 lb, 4,000 lb, 6,000 lb
Power Source Reciprocating Air/Oil
Fork Length 38-1/8 inches
Fork Width 6 inches
Fork Outer Width (OD) 26 inches (fixed)
Operator Reach 7-1/4 inches
Lowered Height 3-1/2 inches
Rotated Height 33 inches
Maximum Tilt Angle 90 degrees
Overall Dimensions 75.5625" L x 41.0625" W x 28.3125" H
Frame Material Heavy-Duty Steel
Finish Durable Blue Powder Coat
Wheel Type Phenolic (Two Rigid, Two Swivel with Brakes)
Wheel Size 8" Diameter, 3" Width
Warranty 1 Year Parts + 90 Days Wearable Parts

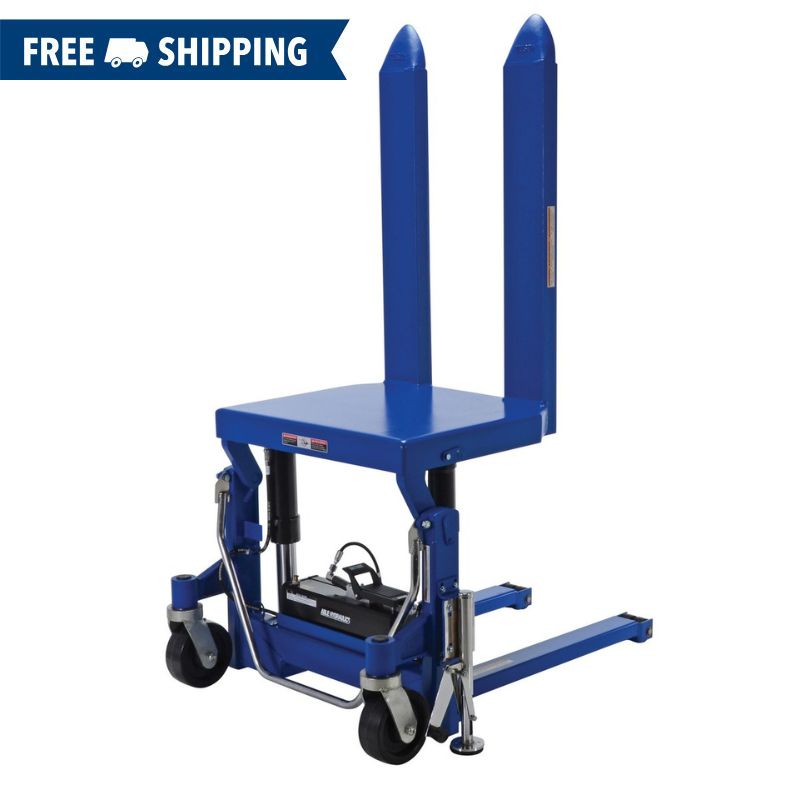

Vestil TM-AIR Tilt Master with Free Shipping

What’s Included with the Vestil TM-AIR Tilt Master.

  • Fully Assembled Vestil TM-AIR Tilt Master
  • Ergonomic Folding Push Handle
  • Floor Lock for Stability
  • Pneumatic Heel/Toe Foot Treadle for Operation
  • Heavy-Duty Phenolic Wheels
  • 1-Year Manufacturer Warranty on Parts + 90-Day Wearable Parts Warranty

Common Questions About the TM-AIR Tilt Master.

What capacity models are available?

The TM-AIR series is available in 2,000 lb, 4,000 lb, and 6,000 lb versions.

Can this tilter work with closed-bottom pallets?

No. It is designed specifically for open-bottom pallets and skids only.

What air requirements are needed?

Standard compressed air is needed to power the reciprocating air/oil motor. No electrical hookups are required.

Does the TM-AIR arrive assembled?

Yes, the Tilt Master TM-AIR is fully assembled and ready to use upon arrival.
