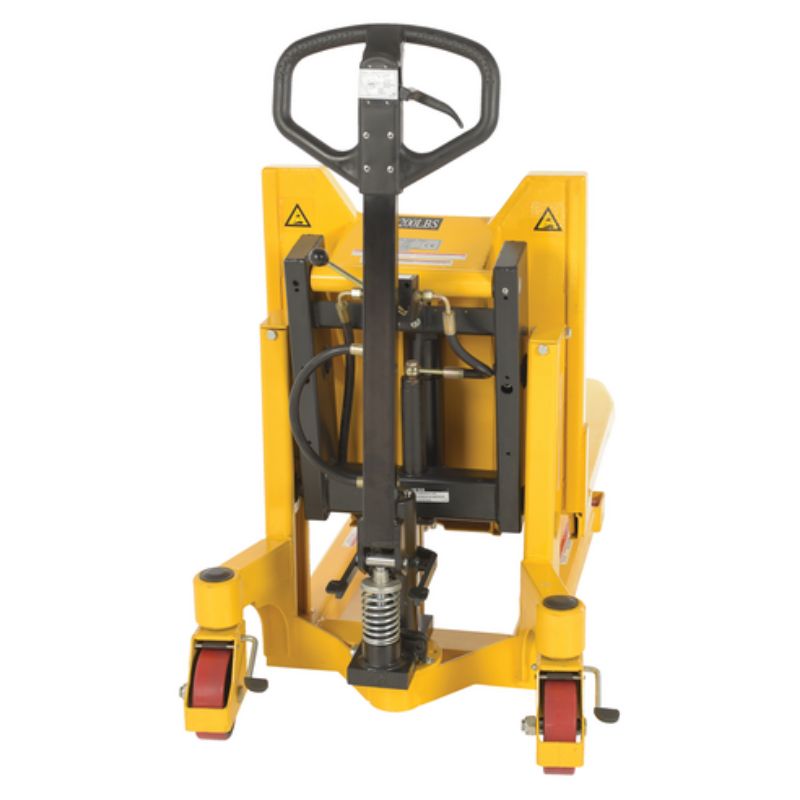

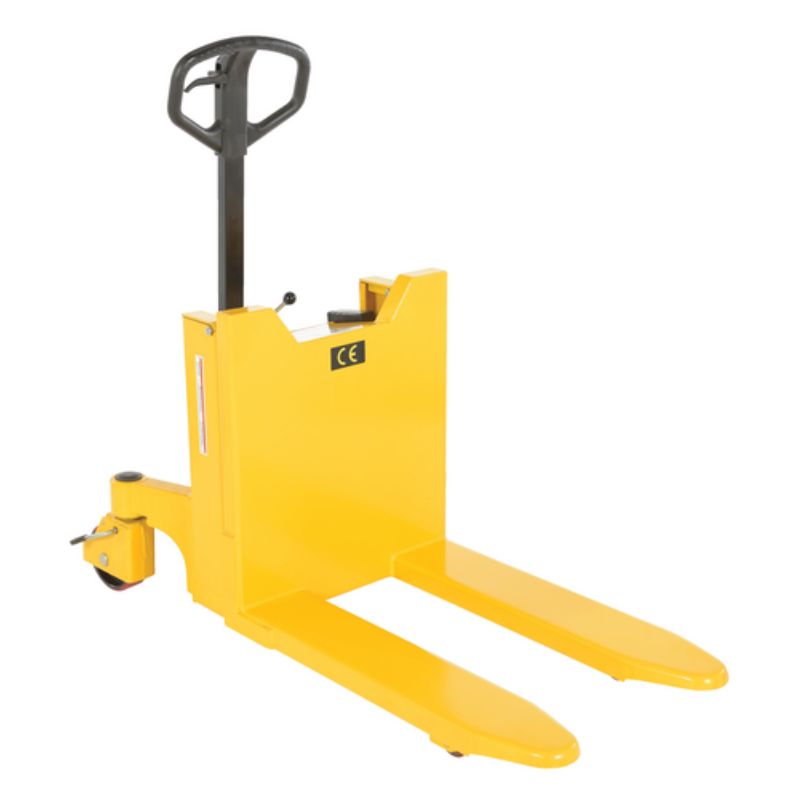

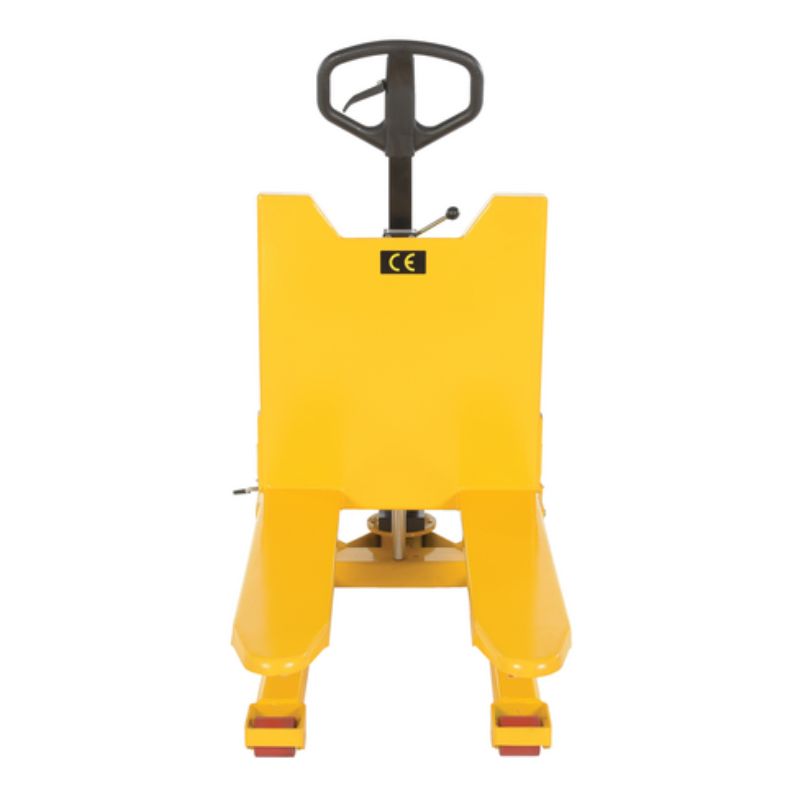

Vestil Steel Tilt Master Manual with 2,200lb Capacity TM-22-M
Vestil
✓ Direct-To-Owner Service
✓ Lifetime Returns & Full Refund
✓ 365 Day Manufacturer Warranty Included
✓ QuickShip Item - It's ready to ship!
✓ Contact for Bulk-Order Pricing
Struggling to Safely Reach and Move Heavy Pallets? Meet the Vestil TM-22-M Tilt Master Manual.
Tired of bending, twisting, and risking injury every time you move or unload a pallet?
- The Vestil Steel Tilt Master Manual TM-22-M makes lifting, tilting, and transporting pallets easier, safer, and more ergonomic without needing a forklift.
Built for environments that demand manual control and durability, this lift gives you fast, flexible movement between workstations while keeping your team upright and comfortable.
2,200lb weight capacity.
90° of tilt capability.
Tilt feature stabilizes uneven loads, helping to prevent accidents.
Max raised fork height of 11.25in, and lowered height of 3.5in.
How the Vestil Tilt Master Manual TM-22-M Improves Your Workflow.

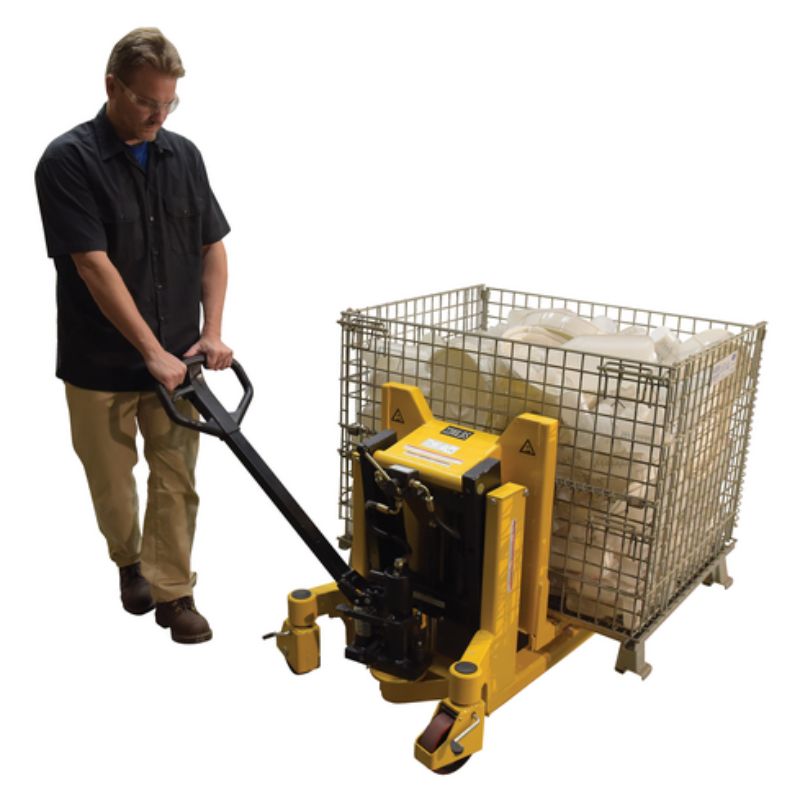

The Vestil Steel Tilt Master TM-22-M gives operators full manual control to raise, tilt, and move loads at a comfortable working height.

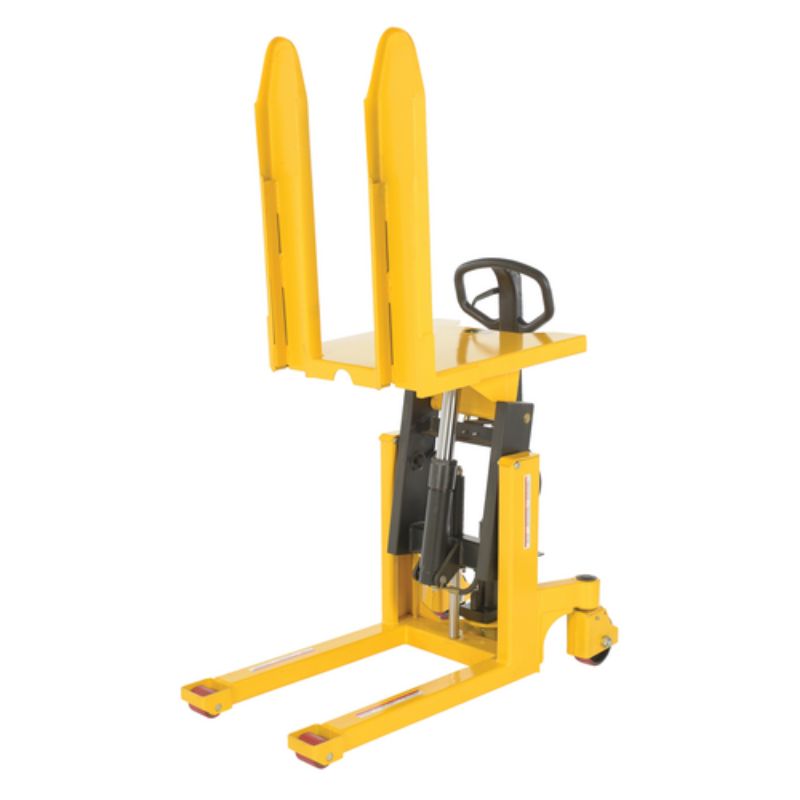

- A 90-degree tilt angle allows for direct ergonomic access to crates, boxes, or pallets, minimizing dangerous strain.
- Two polyurethane swivel casters and a smart frame design make positioning easy and reduce push force.
- Foldable ergonomic handle provides extra convenience, folding down when not needed for better load access.
- No waiting for forklifts. operators can move finished goods between stations quickly and independently.
Smart and Practical Features of the Vestil TM-22-M Tilt Pallet Jack.
With the Vestil TM-22-M Manual Tilt Master, you're getting more than just a basic pallet mover... you're getting a tool designed to optimize daily operations.
- Manual pump lift easily raises loads to the correct height with minimal effort.
- Tilting platform locks securely into position for added worker safety while accessing loads.
- Polyurethane wheels with foot protectors offer smooth rolling and floor protection, even under heavy weights.
- Durable steel frame with powder coat finish ensures long service life in tough environments.
Size, Tilt, and Capacity Details for the Vestil Steel Tilt Master TM-22-M.
The Vestil TM-22-M Manual Tilt Master is sized for optimal versatility without being too bulky for your facility layout.
- Fork dimensions are 31.5 inches long and 6.25 inches wide each.
- Overall width of the unit is 25.25 inches, making it compact for tight work areas.
- Lowered fork height is 3.5 inches, and it lifts to 11.25 inches vertically.
- Full tilt angle of 90 degrees allows you to bring loads directly toward the operator without awkward bending.
- Uniform load capacity is 2,200 pounds, perfect for heavy skids, pallets, and crates.
Important Product Specifications.
| Overall Width | 25.25 inches |
| Overall Depth | 52 inches |
| Overall Height | 46 inches |
| Fork Width | 6.25 inches each |
| Fork Length | 31.5 inches |
| Fork Lowered Height | 3.5 inches |
| Fork Raised Height | 11.25 inches |
| Tilt Range | 0–90 degrees |
| Lift Capacity | 2,200 pounds |
| Wheel Material | Polyurethane |
| Frame Material | Steel |
| Power Source | Manual Hand Pump |
| Warranty | 1 Year (Parts Only) |
What’s Included With Your Vestil TM-22-M Tilt Master.
- One Vestil Steel Tilt Master Manual TM-22-M with a folding ergonomic handle
- Two swivel polyurethane casters with brakes and two rigid casters
- Fully welded steel frame for heavy-duty performance
- Pre-assembled and ready-to-use manual pump system
- 1-year limited parts warranty
Common Questions About the Vestil Manual Tilt Pallet Jack TM-22-M.
Is this unit fully manual, or does it have batteries?
The TM-22-M is completely manual — no batteries, no cords, just reliable hand-powered lifting and tilting.
Can I use this for closed-bottom pallets?
No. This unit is designed specifically for open-bottom pallets or skids, allowing the forks to engage properly.
How hard is it to move when fully loaded?
Not hard at all. The polyurethane casters and compact size make moving even heavy loads surprisingly manageable.
What industries would use the Vestil TM-22-M?
Ideal for warehouses, manufacturing lines, assembly areas, packaging stations, and distribution centers where quick, ergonomic access is needed without forklifts.
